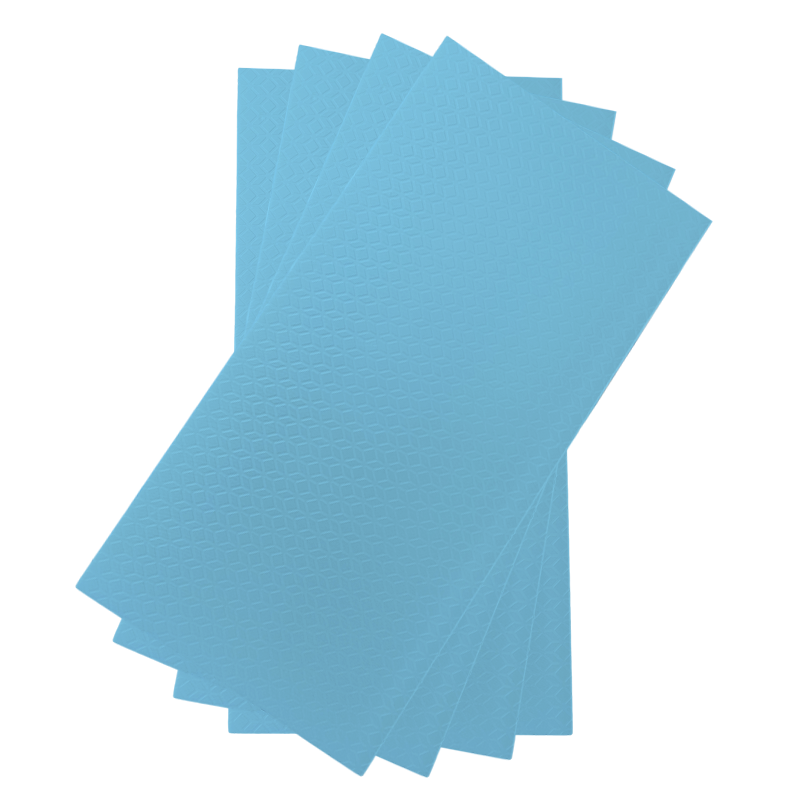

The primary role of refrigerated truck XPS foam boards is to regulate air circulation and partition the vehicle into distinct temperature zones. These boards come in two main types: standard extruded XPS foam boards and temperature-controlled variants. The latter are equipped with temperature-control mechanisms and fans to effectively manage the temperature within their designated zones.
Physical And Mechanical Properties
Item
Unit
Performance
Smooth Surface
X150
X200
X250
X300
X400
X450
X500
Compressive strength
Kpa
≥150
≥200
≥250
≥300
≥400
≥450
≥500
Size
Length
MM
1200/2000/2400/2440
Width
MM
600/900/1200
Thickness
MM
10/20/25/30/40/50/60/70/80/100
Water absorption rate, water seepage 96h
%(Volume fraction)
≤1.0
≤1.0
GB/T 10295-2008 Thermal Conductivity
Average temperature of 25℃
W/(m.K)
≤0.034
≤0.033
Density
kg/m³
28-38
Remark
Product size, density, compressive strength, thermal conductivity support customization
Product Advantage
1. Exceptional Heat Preservation Performance: The XPS foam board boasts a low thermal conductivity, effectively trapping cold air within the car while thwarting the intrusion of external heat. This stability ensures a consistent internal temperature in refrigerated trucks, easing the strain on refrigeration equipment and reducing energy consumption.
2. Robust Strength and Compression Resistance: With its high hardness and compressive strength, the XPS foam board withstands prolonged pressure and vibration without deformation. This resilience shields cargo from damage against carriage walls, upholding optimal insulation.
3. Waterproof and Moisture-Proof: Thanks to its closed-cell structure, the XPS foam board resists water absorption, maintaining thermal insulation efficacy even in humid conditions. This feature prevents moisture-induced thermal degradation and condensation on compartment walls.
4. Lightweight Design: Compared to conventional insulation materials, the XPS foam board boasts a lower density, lightening the vehicle's load. This weight reduction enhances fuel efficiency and maximizes cargo space.
5. Convenient Installation: Precisely cut XPS foam panels easily adhere to and secure within the vehicle, streamlining construction for swift implementation.
6. Excellent Durability: Resistant to aging, the XPS foam board maintains its thermal insulation prowess even after extended use, ensuring enduring performance.
7. Environmentally Friendly and Recyclable: Some XPS foam board products utilize eco-friendly raw materials, minimizing harmful substance emissions during production and use. Moreover, waste materials can be recycled and repurposed to reduce environmental impact.
8. Hygiene and Safety Assurance: For food transportation, the XPS foam board's smooth surface inhibits bacteria growth, aligning with stringent food safety and hygiene standards.
Product Uses
Here are four specific application scenarios of packaging machinery:
1、Cold storage cold chain insulation
2、Building roof insulation
3、Steel structure roof
4、Building wall insulation
5、Building ground moisturising
6、Square ground
7, Ground frost control
8, Central air-conditioning ventilation ducts
9, Airport runway heat insulation layer
10, High-speed railway roadbed, etc.
Product Operate Guide
"Steps for Constructing the Insulation Layer of a Refrigerated Truck:
1. Choose insulation material renowned for its exceptional heat preservation capabilities. Install it within the steel plates and envelop it around the vehicle body. Options include polyurethane and rigid polyurethane insulation materials.
2. During the insulation material installation, meticulous attention must be given to preventing any gaps between the insulation layers to uphold optimum thermal insulation effectiveness.
3. Secure the bond between the insulation material and the steel plate using methods such as riveting or fastening rings to reinforce the fixation of the insulation material."
