Factory Direct Sale Durable Fireproof And High Compression XPS FOAM BOARD In The Middle Of The Door

Share to:

Factory Direct Sale Durable Fireproof And High Compression XPS FOAM BOARD In The Middle Of The Door

Availability:

Quantity:



Inquire Add to Basket

Product Introduction

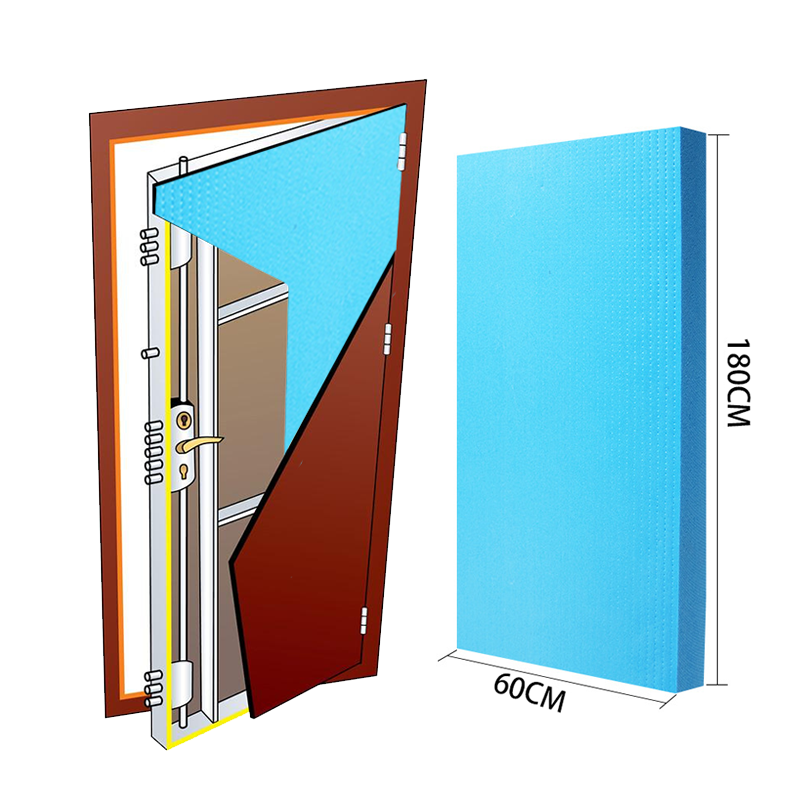

Extruded panels are extensively employed in the construction sector due to their manifold benefits. These include remarkable compressive strength, superior waterproofing, flame retardant features, lightweight nature, ease of installation, and energy efficiency. Consequently, they emerge as the preferred material for crafting various kinds of doors, ensuring they possess high performance, durability, safety, and aesthetic appeal.

Physical And Mechanical Properties
Item		Unit	Performance
			Smooth Surface
			X150	X200	X250	X300	X400	X450	X500
Compressive strength		Kpa	≥150	≥200	≥250	≥300	≥400	≥450	≥500
Size	Length	MM	1200/2000/2400/2440
	Width	MM	600/900/1200
	Thickness	MM	10/20/25/30/40/50/60/70/80/100
Water absorption rate, water seepage 96h		%(Volume fraction)	≤1.0		≤1.0
GB/T 10295-2008 Thermal Conductivity	Average temperature of 25℃	W/(m.K)	≤0.034			≤0.033
Density		kg/m³	28-38
Remark	Product size, density, compressive strength, thermal conductivity support customization

Product Advantage

1. Exceptional Durability: Extruded plastic boards have outstanding durability and resistance to compression. They withstand external impacts effectively and deter aging and inhibit bacterial growth.

2. Superior Thermal Insulation: Extruded plastic boards have remarkable thermal insulation capabilities, hindering temperature transfer between the interior and exterior of the door. This enhances the overall thermal insulation performance of the door.

3. Enhanced Safety: Extruded plastic boards are non-flammable and possess flame retardancy, contributing to fire protection measures. This enhances the safety performance of the door by mitigating fire risks.

Product Uses

Here are four specific application scenarios of packaging machinery:

1、Cold storage cold chain insulation

2、Building roof insulation

3、Steel structure roof

4、Building wall insulation

5、Building ground moisturising

6、Square ground

7, Ground frost control

8, Central air-conditioning ventilation ducts

9, Airport runway heat insulation layer

10, High-speed railway roadbed, etc.

Product Operate Guide

1. Select Insulation Materials

- Common insulation materials include foam, polystyrene board, and glass wool. Choose the appropriate material based on the door type: use foam or glass wool for metal doors and polystyrene board for wooden doors.

2. Cut Insulation Material

- Cut the chosen insulation material to match the size of the door panel. Ensure the material covers as much of the panel as possible for optimal insulation.

3. Attach Insulation Material

- Attach the cut insulation material to the door panel using glue or sealant. Ensure there are no gaps at the edges for maximum effectiveness.

4. Seal the Door Edges

- Pay special attention to sealing the edges of the door, which are crucial for security and insulation. Use materials like windproof tape or rubber strips to seal these areas and prevent cold air from entering through gaps.

5. Install Door Tape

- Apply windproof tape along the door seams to enhance the door's airtightness, further improving insulation and preventing drafts.
