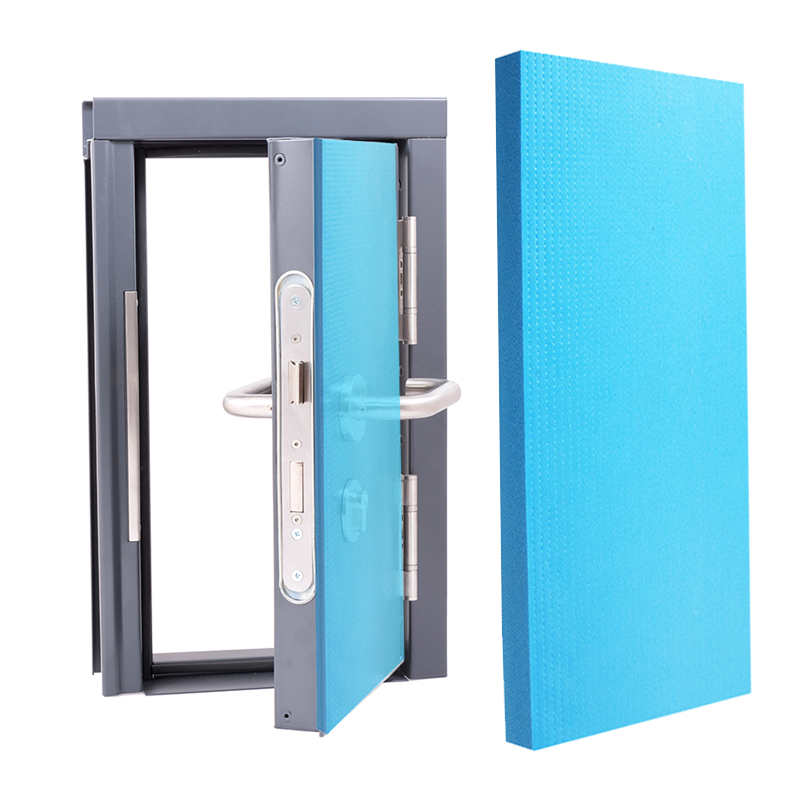

With multiple advantages such as high compressive strength, excellent waterproofing and flame retardant properties, as well as light weight, ease of installation and energy efficiency, extruded panels are widely used in the construction industry and are the ideal choice of material for the manufacture of all types of high-performance, durable, safe and aesthetically pleasing doors.
Physical And Mechanical Properties
Item
Unit
Performance
Smooth Surface
X150
X200
X250
X300
X400
X450
X500
Compressive strength
Kpa
≥150
≥200
≥250
≥300
≥400
≥450
≥500
Size
Length
MM
1200/2000/2400/2440
Width
MM
600/900/1200
Thickness
MM
10/20/25/30/40/50/60/70/80/100
Water absorption rate, water seepage 96h
%(Volume fraction)
≤1.0
≤1.0
GB/T 10295-2008 Thermal Conductivity
Average temperature of 25℃
W/(m.K)
≤0.034
≤0.033
Density
kg/m³
28-38
Remark
Product size, density, compressive strength, thermal conductivity support customization
Product Advantage
1. High durability: Extruded plastic board has excellent durability and compression resistance, can withstand external impact, and prevents aging and bacterial growth.
2. Good thermal insulation: Extruded plastic board has very good thermal insulation performance, effectively preventing temperature transfer between inside and outside the door, and improving the door's thermal insulation performance.
3. Good safety: The extruded plastic board is non-flammable, has flame retardancy, and can protect against fire, improving the door's safety performance.
Product Uses
Here are four specific application scenarios of packaging machinery:
1、Cold storage cold chain insulation
2、Building roof insulation
3、Steel structure roof
4、Building wall insulation
5、Building ground moisturising
6、Square ground
7, Ground frost control
8, Central air-conditioning ventilation ducts
9, Airport runway heat insulation layer
10, High-speed railway roadbed, etc.
Product Operate Guide
1. Selection of insulation materials
Commonly used insulation materials are foam, polystyrene board, glass wool, etc. Choose different insulation materials for construction based on the material of the door. For example, metal doors can be wrapped with foam or glass wool, while wooden doors are suitable for materials such as polystyrene board.
2. Cut the insulation material into the same size as the door panel.
Cut the prepared insulation material according to the size of the door panel to ensure maximum coverage area and achieve better insulation effect.
3. Paste the insulation material onto the door panel.
Paste the insulation material onto the door panel using glue or seal. Ensure there are no gaps at the edges.
4. Seal the edge of the door.
The edge of the door is an important location for security doors and requires special attention. Use windproof tape or rubber strips to seal the gaps and prevent cold air from seeping through, achieving heat preservation effect.
5. Installation of door tape
Door tape can enhance the airtight performance of the door, with windproof tape along the door seam can be glued.
