Ever looked at a sheet of foam board insulation and thought, “How on earth did they turn a pile of plastic pellets into this light, rigid, cloud-like thing?”
You're not alone. It's basically magic—but with more chemistry and fewer wands. Let's pull back the curtain on how your favorite pink, blue, or foil-faced panels actually come to life. Spoiler: it involves heat, pressure, gas, and a little bit of controlled chaos.
The Two Big Families: EPS vs. XPS vs. Polyiso
Before we dive in, know that foam boards come in three main flavors—EPS (Expanded Polystyrene), XPS (Extruded Polystyrene), and Polyiso (Polyisocyanurate). They're all cousins, but each has its own origin story. Let's meet them.
EPS: The "Popcorn" Method
EPS—the white, bead-like foam you've probably seen in coffee cups and packaging—starts its life as tiny polystyrene pellets that look like sugar crystals. These little guys contain a blowing agent (usually pentane) trapped inside them, just waiting to bust out.
Step 1: Pre-Expansion— The pellets are heated with steam, which softens the polystyrene and causes the pentane to expand. Each pellet puffs up into a foam bead about 30 to 50 times its original size. Think of it like microwave popcorn, but without the butter and movie theater smell.
Step 2: Aging (or "Maturing")— The expanded beads need to rest for a while—anywhere from a few hours to a couple of days. During this "aging" period, air slowly diffuses into the cells, stabilizing the beads and getting them ready for the next step. It's like letting bread dough rise before baking.
Step 3: Molding— The aged beads are poured into a large metal mold (often the size of a full wall panel). Steam is injected again, and the beads soften, expand further, and fuse together into one solid block. The mold is cooled, and out pops a giant block of EPS foam—like a massive, fluffy marshmallow.
Step 4: Cutting — That big block is then sliced by hot wires into boards of whatever thickness you need. And voilà—EPS foam board, ready to insulate your basement or protect your new TV.
XPS: The "Extruded" Method

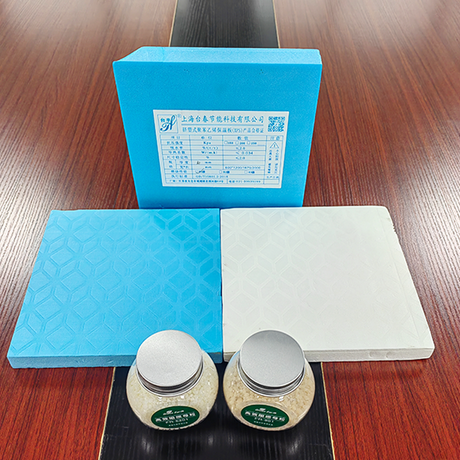

XPS—the blue or pink stuff from brands like Dow Styrofoam™ or Owens Corning Foamular®—is a different beast entirely. It's denser, stronger, and more moisture-resistant than EPS. And its manufacturing process is more like making play-dough than popcorn.
Step 1: Melting the Mix — Polystyrene crystals (both virgin and recycled) are fed into a giant extruder—a long, heated barrel with a massive screw inside. The screw crushes, mixes, and melts the plastic into a thick, gooey liquid at around 200–220°C. This is where the magic begins.
Step 2: Injecting the Gas— Here's the cool part. A blowing agent (often a blend of gases like HFO-1234ze or carbon dioxide) is injected into the molten polystyrene under very high pressure. The pressure is so intense that the gas actually dissolves into the plastic—like carbon dioxide dissolved in a soda can.
Step 3: Cooling Down — The molten, gas-filled mixture is transferred to a second, cooler extruder. This stage drops the temperature to around 110–130°C. Why? Because cooler plastic is stronger plastic—and it needs to be strong enough to hold onto all that expanding gas without collapsing.
Step 4: Extrusion (The Big Moment) — The cooled, pressurized mixture is forced through a flat "slit die" at the end of the extruder. As it exits, the pressure suddenly drops to normal atmospheric pressure. And just like opening a shaken soda bottle, *POOF*—the dissolved gas instantly vaporizes and expands, turning the liquid plastic into a foamy, cellular structure.
Step 5: Shaping and Sizing — The expanding foam is guided through calibrating bars and a vacuum chamber that control its thickness and width. It's then cooled, trimmed, and cut into boards. Offcuts are recycled back into the process—zero waste to landfill.
The result? A closed-cell foam board with incredible compressive strength and moisture resistance. All from a glorified plastic Play-Doh extruder.
Polyiso: The "Chemical Reaction" Method
Polyiso (polyisocyanurate) is the overachiever of the foam board family—highest R-value per inch, foil-faced, and often used on roofs. Its manufacturing process is less about popping or extruding, and more about chemistry.
Step 1: Mixing the Potions — Polyiso is made from two liquid chemical components: the "A-side" (isocyanate) and the "B-side" (polyol with catalysts and additives). Think of them like epoxy resin and hardener—they're fine on their own, but when they meet, things get exciting.
Step 2: Adding the Blowing Agent — A blowing agent (again, often pentane) is mixed into the blend at the "mixing head." This is the ingredient that will create all those tiny air pockets.
Step 3: The Sandwich — Two rolls of facing material (often aluminum foil or kraft paper) are unwound and fed toward the laminator. The liquid chemical mixture is poured onto the bottom facing, and the top facing is laid over it—like making a giant, chemical-filled sandwich.
Step 4: The Laminator (Where Chemistry Happens) — The sandwich enters the laminator—a heated, moving conveyor system that controls thickness and temperature. Inside, the chemical reaction kicks off. The liquid mixture transforms into a rigid foam core, expanding and hardening as it travels through. This is exothermic, meaning it generates its own heat—like a self-warming blanket of insulation.
Step 5: Curing and Cutting — After exiting the laminator, the continuous foam board is trimmed, cut into 4- or 8-foot lengths, and stacked. But wait—it's not done yet. The boards need to cure in the warehouse for a while, allowing the chemical reaction to finish and the foam to stabilize.
Bonus fact: About 95% of the finished polyiso board is actually air—trapped in those tiny closed cells. And air, as it turns out, is one of nature's best insulators.
The Common Thread: It's Mostly Air
Here's the wild part—whether it's EPS, XPS, or polyiso, about 95% of foam board insulation is just trapped air. The plastic is just the skeleton holding all those tiny gas bubbles in place. The better the skeleton (and the smaller, more uniform the bubbles), the better the insulation.
So next time you're wrestling a 4x8 sheet of foam board into your basement ceiling, take a moment to appreciate the journey it took: from plastic pellets or liquid chemicals, through heat, pressure, and a whole lot of expansion, to become the lightweight, energy-saving hero it is today.
