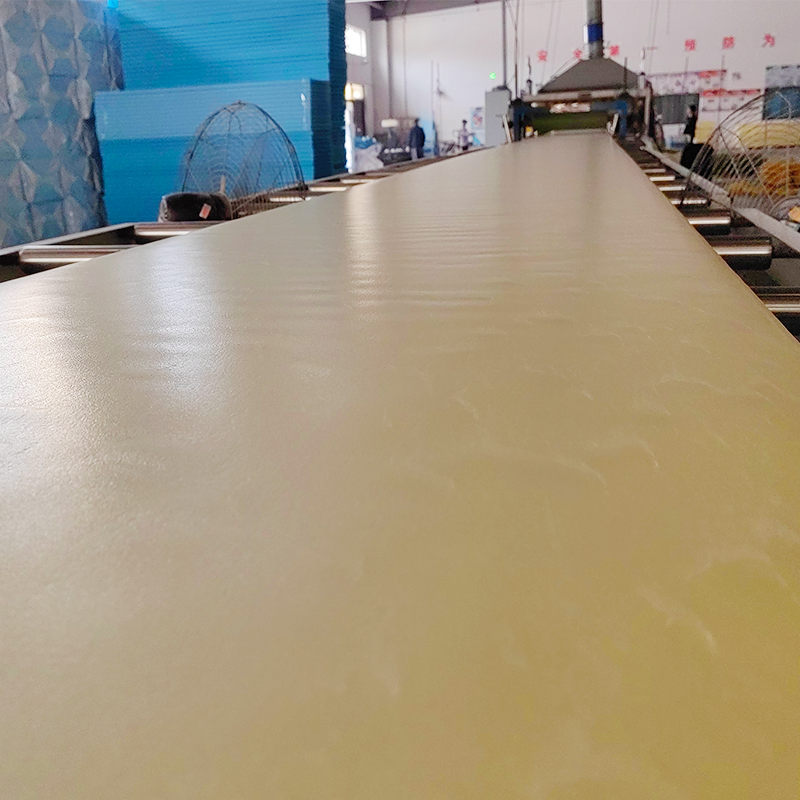

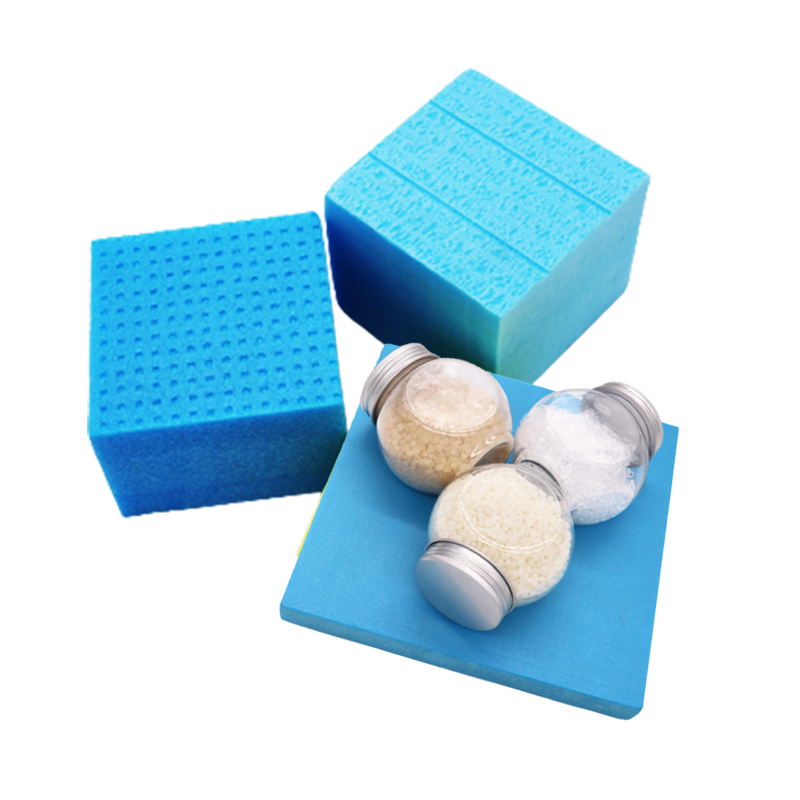

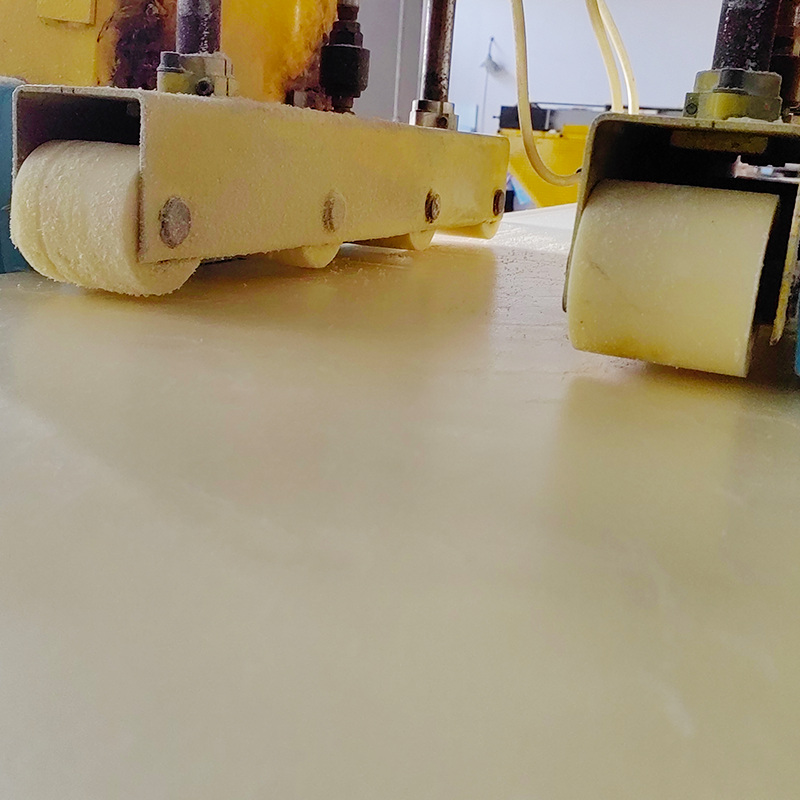

Extruded ceiling panels are made from high-quality polystyrene resin and environmentally friendly additives. They are crafted using precision extrusion technology, resulting in a continuous and uniform closed-cell honeycomb structure. These panels boast numerous excellent properties, making them high-performance, multifunctional insulation materials ideal for construction. They meet the demands of modern building ceilings by providing heat preservation, thermal insulation, sound insulation, and structural stability.
Physical And Mechanical Properties
Item
Unit
Performance
Smooth Surface
X150
X200
X250
X300
X400
X450
X500
Compressive strength
Kpa
≥150
≥200
≥250
≥300
≥400
≥450
≥500
Size
Length
MM
1200/2000/2400/2440
Width
MM
600/900/1200
Thickness
MM
10/20/25/30/40/50/60/70/80/100
Water absorption rate, water seepage 96h
%(Volume fraction)
≤1.0
≤1.0
GB/T 10295-2008 Thermal Conductivity
Average temperature of 25℃
W/(m.K)
≤0.034
≤0.033
Density
kg/m³
28-38
Remark
Product size, density, compressive strength, thermal conductivity support customization
Product Advantage
1. Insulation: XPS foam boards provide excellent thermal insulation properties. By installing them in the ceiling, you can reduce heat transfer between the interior and exterior of the building, leading to energy savings on heating and cooling costs.
2. Moisture Resistance: XPS foam boards are resistant to moisture, making them suitable for use in areas prone to high humidity or moisture exposure, such as bathrooms or kitchens. This moisture resistance helps prevent mold and mildew growth, preserving indoor air quality and the structural integrity of the ceiling.
3. Strength and Durability: XPS foam boards are strong and durable, capable of supporting the weight of ceiling finishes such as drywall or plaster. They also provide additional structural support, reducing the risk of sagging or cracking over time.
4. Easy Installation: XPS foam boards are lightweight and easy to handle, making them simple to install in various ceiling configurations. They can be easily cut to size using standard tools, allowing for precise fitting around obstacles like electrical fixtures or ductwork.
5. Fire Resistance: XPS foam boards have a high resistance to fire, which enhances the safety of the building. In the event of a fire, XPS foam boards can help slow the spread of flames and reduce the risk of fire damage to the ceiling structure.
6. Sound Insulation: XPS foam boards also offer acoustic insulation properties, helping to reduce noise transmission between different rooms or floors in a building. This can contribute to a quieter and more comfortable indoor environment.
7. Longevity: XPS foam boards are resistant to rot, decay, and degradation from exposure to sunlight, ensuring long-term performance and minimizing the need for maintenance or replacement.
Overall, using XPS foam boards for ceiling construction can provide a range of benefits, including improved energy efficiency, durability, moisture resistance, fire safety, and acoustic performance.
Product Uses
Here are four specific application scenarios of packaging machinery:
1、Cold storage cold chain insulation
2、Building roof insulation
3、Steel structure roof
4、Building wall insulation
5、Building ground moisturising
6、Square ground
7, Ground frost control
8, Central air-conditioning ventilation ducts
9, Airport runway heat insulation layer
10, High-speed railway roadbed, etc.
Product Operate Guide
1. Preparation
1.Measurements and Planning:
- Measure the dimensions of the ceiling area to determine the amount of XPS foam boards needed. Plan the layout, taking into account any obstructions such as light fixtures or vents.
2.Safety Precautions:
- Wear appropriate safety gear, including gloves, goggles, and a dust mask, especially during cutting and installation to protect against dust and debris.
2. Installation
3.Surface Preparation:
- Ensure the ceiling surface is clean, dry, and free from any debris or protrusions. Repair any imperfections or cracks in the surface.
4.Adhesive Application:
- Apply a suitable adhesive to the back of the XPS foam boards using a notched trowel or a recommended adhesive applicator. Ensure even coverage to maximize adhesion.
5.Board Placement:
- Carefully place each XPS foam board onto the ceiling surface, pressing firmly to ensure proper adhesion. Maintain consistent spacing between boards for a uniform finish.
6.Cutting and Shaping:
- Use a utility knife or a specialized foam board cutter to trim the boards as needed to fit around obstacles or along the edges of the ceiling. Ensure precise cuts for a professional-looking installation.
7.Securing:
- Optionally, use mechanical fasteners such as screws or nails to further secure the foam boards to the ceiling surface, especially for larger or heavier boards or in areas prone to movement.
3. Finishing
8.Sealing Joints:
- Seal any gaps or joints between the foam boards using an appropriate sealant or adhesive. This helps improve insulation and prevent air leakage.
9.Surface Preparation for Finishing:
- If desired, prepare the surface of the foam boards for finishing treatments such as painting or plastering. Follow the manufacturer's recommendations for surface preparation.
10.Finishing Treatments:
- Apply a primer or base coat to the foam board surface before painting to ensure proper adhesion and a smooth finish. Alternatively, apply plaster or skim coat for a textured finish.
4. Final Touches
11.Trim Installation:
- Install any necessary trim or molding along the edges of the ceiling to provide a clean and finished appearance. Use adhesive or mechanical fasteners as appropriate.
12.Inspection and Touch-Ups:
- Inspect the entire ceiling surface for any imperfections or areas that may require touch-ups. Make any necessary adjustments or repairs to ensure a flawless finish.
Conclusion
Constructing a ceiling using XPS foam boards involves careful planning, precise installation, and proper finishing techniques. By following these steps, you can create a well-insulated and visually appealing ceiling that enhances the comfort and aesthetics of the space.
