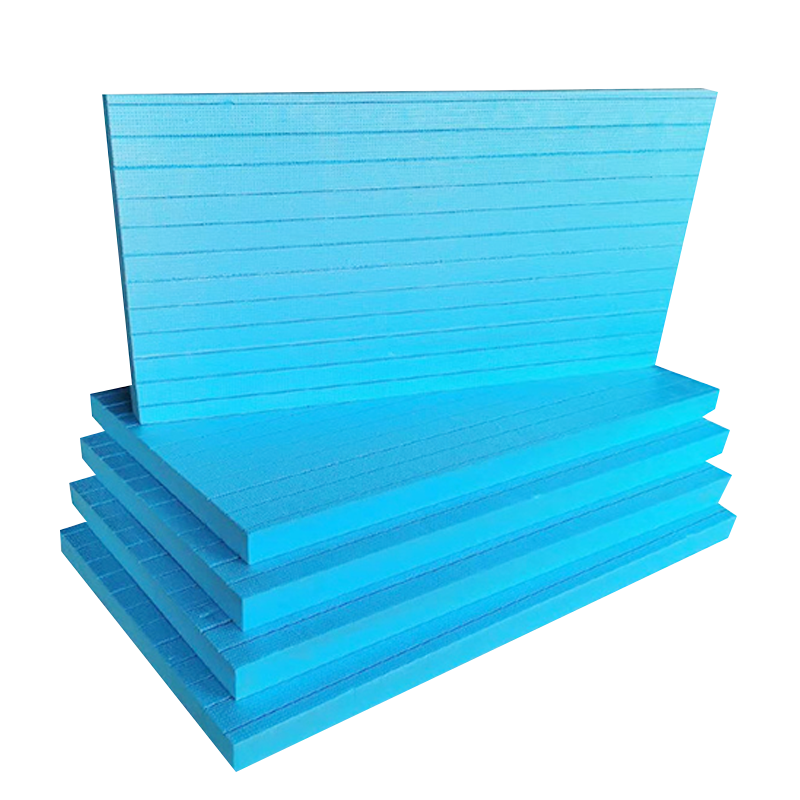

Rigid Insulation Types XPS Foam Block 10mm-100mm

Cold storage XPS foam board is a vital component in the construction of cold chain facilities, boasting excellent resistance to water vapor permeation and compression. Utilizing an extruded plastic board system in cold storage construction ensures buildings maintain thermal stability, keeping interiors warm in winter and cool in summer. This application offers a distinct advantage as it not only provides insulation but also leverages the microporous structure of the XPS foam board surface to absorb and buffer minimal water vapor condensation, thus mitigating the formation of water droplets.

Rigid Insulation Types XPS Foam Block 10mm-100mm is a premium insulation material specifically designed for cold storage construction and other thermal applications. Manufactured through an advanced extrusion process, it features a closed-cell structure that provides exceptional thermal resistance, water vapor permeability, and compressive strength. This material is widely used in cold chain facilities to maintain thermal stability, reduce energy consumption, and ensure optimal performance in both hot and cold climates.

1. Exceptional Thermal Performance

The XPS foam block offers outstanding insulation properties certified by GB/T 10295-2008, ensuring thermal stability across diverse environments:

Thermal Conductivity:

≤0.034 W/(m·K) for X150

≤0.033 W/(m·K) for X200 and higher grades

2. Superior Water Resistance

With a water absorption rate of ≤1.0% over 96 hours, the foam block minimizes water vapor infiltration. The microporous surface structure absorbs and buffers minimal condensation, reducing the formation of water droplets that could compromise insulation efficiency.

3. Customizable Sizes

The foam block comes in a variety of dimensions to meet specific project needs:

Length (mm): 1200, 2000, 2400, 2440

Width (mm): 600, 900, 1200

Thickness (mm): 10, 20, 25, 30, 40, 50, 60, 70, 80, 100

4. Durability and Stability

The material’s high-density range (28-38 kg/m³) and closed-cell construction ensure long-term performance under harsh conditions. It resists deformation, water ingress, and wear, making it ideal for cold storage and similar applications.

5. Versatile Applications

This rigid insulation foam block is suitable for:

Cold Chain Facilities: Provides thermal stability and reduces condensation risks.

Roofing Systems: Ensures insulation and load-bearing strength.

Wall Panels: Enhances energy efficiency in commercial and residential buildings.

Flooring: Serves as a durable base with excellent thermal resistance.

1. What is the primary application of XPS foam block?

The XPS foam block is primarily used for insulation in cold chain facilities, roofing systems, walls, and flooring. Its thermal efficiency and moisture resistance make it ideal for maintaining stable temperatures in various environments.

2. How does XPS foam block handle moisture?

The material’s closed-cell structure and a water absorption rate of ≤1.0% prevent water vapor infiltration. Its microporous surface also buffers minimal condensation, reducing the risk of water droplets forming.

3. What sizes and thicknesses are available?

The foam blocks are available in standard sizes (1200/2000/2400/2440 mm length and 600/900/1200 mm width) and thickness options ranging from 10 mm to 100 mm. Custom sizes can also be tailored to specific needs.

4. Can XPS foam block be used in wet environments?

Yes, its water-resistant properties make it an excellent choice for damp or humid conditions, such as basements and cold storage facilities.

5. Are the foam blocks environmentally friendly?

Yes, XPS foam blocks are manufactured using eco-conscious processes and contain no harmful substances, contributing to sustainable construction practices.
