Insulation failure in the cold chain carries massive operational stakes. It directly leads to wasted energy, compromised payload capacities, and devastating product spoilage. Facility managers and fleet engineers face a persistent dilemma. They must constantly choose between Expanded Polystyrene (EPS) and Extruded Polystyrene (XPS). Both materials offer reliable baseline thermal resistance. However, their unique manufacturing processes cause divergent long-term performance. Dynamic loads and heavy moisture conditions test these limits severely over time. Our purpose here is to provide a clear, evidence-based framework. You will learn how to evaluate both materials properly. We will explore operational risks, structural differences, and specific application demands. You will understand how moisture permeability and compressive strength impact your facility or fleet. By the end, you will know exactly which insulation type aligns best. We ensure you can meet your rigorous cold chain requirements confidently.
Key Takeaways
While EPS offers a lower initial material cost, its higher moisture absorption rate can lead to significant thermal degradation in sub-zero environments over time.
XPS provides superior compressive strength, making it the industry standard for high-traffic cold storage flooring subject to heavy forklift loads.
For transport logistics, custom XPS insulation maximizes internal cargo space and maintains structural integrity under constant transit vibration.
The choice between EPS and XPS should be dictated by lifecycle ROI, moisture exposure risk, and dynamic load requirements, rather than upfront procurement costs alone.
EPS vs. XPS Insulation: Understanding the Structural Differences
EPS relies on a bead-molding process. Manufacturers use steam to expand tiny polystyrene beads. These expanded beads fuse together inside a mold to form a large block. This specific manufacturing process inherently leaves small interstitial voids between the individual beads. Water vapor can easily penetrate these tiny gaps. You will often see moisture accumulate inside these spaces over time.

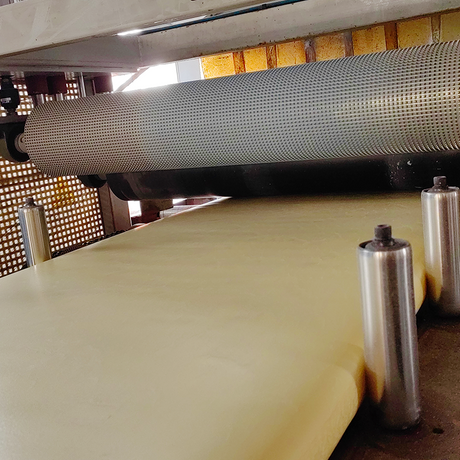

Conversely, XPS utilizes a continuous extrusion process. The polystyrene polymer melts and passes through a specialized die. It expands into a uniform, closed-cell foam board continuously. This continuous matrix results in a 99% closed-cell structure. It maintains a highly consistent density throughout the entire profile. There are no beads to separate. There are no macroscopic voids for water to fill.
Moisture permeability heavily dictates thermal drift. Thermal drift refers to the gradual loss of insulating power. Water ingress drastically reduces long-term R-value. Liquid water conducts heat roughly 25 times faster than trapped air. XPS typically absorbs less than 1% moisture by volume. EPS absorbs significantly more moisture under prolonged exposure. Sub-zero environments exacerbate this specific issue dramatically. Trapped water freezes and expands inside the EPS matrix. This expansive force physically fractures the bead bonds.
Baseline R-value comparisons reveal distinct performance gaps right away. XPS inherently provides higher thermal resistance per unit of thickness. XPS generally offers a starting R-value of R-5.0 per inch. EPS typically delivers around R-3.8 to R-4.2 per inch. Engineers must account for these exact numbers during facility design. It heavily influences the ongoing debate regarding eps vs xps insulation. XPS requires less physical space to achieve target thermal barriers. You save valuable inches in wall thickness.
Evaluating XPS Foam Board for Cold Storage Facilities
Cold storage floors present immense structural engineering challenges. Facilities must constantly support massive static loads. Multi-level steel racking systems concentrate extreme weight onto small base plates. Dynamic loads compound this stress significantly. Heavy forklifts and motorized pallet jacks roll across the floor daily. Repeated rolling traffic causes immense fatigue on any sub-slab insulation. Choosing the right material prevents devastating concrete slab settlement. It also stops catastrophic insulation crushing beneath the surface.
You can specify XPS foam board for cold storage in exceptionally high compressive strengths. Manufacturers produce robust options rated at 40, 60, and even 100 psi. These rigorous ratings easily support heavy industrial equipment. They meet the strict demands of modern distribution centers. EPS simply cannot match this compressive resilience reliably. High-density EPS variants do exist. However, they remain highly prone to micro-deformation and creep over time.
Wall and ceiling applications face intense vapor drive forces constantly. Blast freezers and coolers experience extreme temperature differentials daily. Warm, moist outside air pushes aggressively toward the frozen interior space. Closed-cell XPS actively prevents condensation buildup within panel joints. Moisture inside joints often leads to dangerous ice expansion. Ice lenses can physically pry insulated metal panels apart. This structural damage requires extensive downtime for costly repairs.
Implementation risks demand careful attention from your construction team. You must execute proper vapor barrier detailing meticulously. XPS is highly moisture-resistant by nature. However, systemic envelope failures still happen due to poor installation. Poorly sealed joints allow vapor to bypass the insulation entirely. Teams must use compatible sealants and robust taping methods.
Common mistakes to avoid:
Ignoring thermal bridging at wall-to-floor junctions.
Using mechanical fasteners without proper thermal breaks.
Failing to seal panel edges perfectly against moisture ingress.
Best practices require continuous insulation layers wrapping the entire facility envelope perfectly.
Specifying Custom XPS Insulation for Refrigerated Trucks
Fleet management requires balancing multiple conflicting priorities carefully. Operators weigh payload optimization against insulation weight constantly. Utilizing custom XPS insulation for refrigerated trucks allows for significantly thinner panel profiles. Thinner walls directly increase the available cubic volume inside the trailer. You can haul more pallets of goods per trip. This spatial efficiency maximizes logistics efficiency without exceeding legal vehicle weight limits.
Continuous road transit applies severe mechanical stress to truck bodies. Trailers endure constant vibration and aggressive shear forces on highways. Road bumps and turning torque flex the trailer box repeatedly. The rigid, continuous matrix of XPS resists delamination brilliantly. It avoids the physical breakdown commonly seen in beaded EPS products. Repetitive shear forces often cause EPS beads to detach internally. This detachment creates dangerous internal voids over time. Voids destroy the thermal barrier completely.
Custom CNC routing guarantees exact fitment for complex geometries. Precision matters deeply in specialized transport applications. Tight-tolerance, custom-milled XPS eliminates dangerous thermal bridging permanently. Fabricators shape the rigid foam perfectly around rounded wheel wells. They route precise interlocking channels for rear doors. They cut exact mounts for heavy refrigeration units.
Standard rectangular boards leave critical air gaps behind the outer shell. Installers usually fill these gaps hastily using inferior spray foams. Spray foams degrade faster under mechanical vibration. CNC-routed pieces snap together flawlessly instead. They form an uninterrupted, robust thermal shield. This continuous shield protects your sensitive cargo from external heat effectively.
Lifecycle Assessment and Operational Reliability
Evaluating the full lifespan of insulation requires looking far beyond initial procurement. EPS is often cheaper upfront during the purchasing phase. Sometimes it runs 20 to 30 percent less than premium materials. However, escalating HVAC and refrigeration energy costs follow quickly if the insulation fails. When EPS absorbs moisture, it loses its thermal resistance rapidly. Facility compressors must work harder and longer. They burn significantly more electricity to maintain sub-zero climates safely.
We must compare the functional longevity of both materials critically. High-moisture cold chain environments degrade weaker structures predictably. XPS maintains its structural integrity and R-value for decades. Its closed-cell geometry stubbornly resists aggressive moisture penetration. Conversely, EPS often requires earlier replacement cycles in demanding facilities. Ground vapor and frequent chemical washdowns saturate the EPS over time. Replacing sub-slab insulation disrupts facility operations completely. The downtime alone creates massive operational headaches.
Material reliability heavily impacts strict regulatory compliance. Exact temperature logs dominate the pharmaceutical and food safety sectors globally. The Food Safety Modernization Act (FSMA) mandates rigorous thermal control protocols. Unpredictable thermal drift creates dangerous temperature fluctuations inside the facility. These fluctuations risk costly product spoilage immediately. They also trigger severe compliance violations during audits. Specifying robust, predictable insulation acts as powerful risk mitigation. It ensures stable temperatures and protects sensitive payloads continuously.
Decision Framework: Shortlisting the Right Insulation
Engineers and facility managers must evaluate their specific parameters carefully. You cannot rely on guesswork when protecting millions of dollars in inventory. We have compiled a clear, actionable framework below. It guides your material selection process effectively.
Performance Metric Comparison for Cold Chain Environments
Performance Metric | Expanded Polystyrene (EPS) | Extruded Polystyrene (XPS) |
Moisture Absorption | High risk under prolonged exposure | Extremely low (typically < 1% by volume) |
Compressive Strength | Low to moderate (10-60 psi max) | High to extreme (40-100 psi) |
Thermal Resistance (R-Value per Inch) | R-3.8 to R-4.2 | R-5.0 consistently |
Transit Vibration Durability | Prone to internal bead shedding | Highly resilient and solid |
When to specify EPS:
Dry, static environments facing minimal moisture threats daily.
Applications demanding very low compressive load requirements.
Temporary cooler walls needing short-term thermal barriers only.
Non-load-bearing architectural elements positioned entirely above grade.
When to specify XPS:
High-moisture environments demanding absolute water resistance constantly.
Sub-zero blast freezers experiencing intense vapor drive pressures.
Load-bearing floors supporting heavy, repetitive forklift traffic.
All mobile refrigerated transport applications requiring extreme structural durability.
Next-Step Actions for project specifiers:
Request detailed material data sheets from your chosen foam manufacturers.
Verify compressive strength test methods using certified ASTM D1621 standards.
Consult custom routing fabricators regarding exact panel dimension tolerances.
Review vapor barrier implementation details alongside your structural engineering team.
Perform a thorough energy modeling analysis based on aged R-values.
Conclusion
Rigorous cold chain applications demand exceptional material performance consistently. Flooring installations and transport logistics test insulation to its absolute limits. The superior durability and unmatched moisture resistance of XPS clearly justify its selection. Extruded polystyrene provides unwavering thermal stability over decades of use. It resists crushing under immense mechanical loads. It survives the punishing vibrations of the open road effortlessly. These characteristics protect your sensitive products from spoilage.
You must secure your thermal envelope professionally. Contact an experienced engineering team or specialized insulation fabricator today. They will calculate your specific R-value requirements accurately. They can assess your dynamic compressive load needs effectively. Request a comprehensive quote for precision custom-milled XPS solutions. Protect your facility and your fleet using materials built specifically for the challenge.
FAQ
Q: Does XPS lose its R-value over time?
A: XPS does experience minor initial thermal drift as manufacturing gases escape. However, the long-term R-value stabilizes quickly around R-5.0 per inch. Because XPS features a highly moisture-resistant closed-cell structure, it maintains this thermal resistance permanently. It remains vastly superior to EPS, which often absorbs moisture and loses its insulating properties significantly over time.
Q: Can EPS be used under a cold storage concrete slab?
A: High-density EPS variants do exist for flooring. However, using EPS under cold storage slabs carries significant risks. It remains vulnerable to moisture absorption from ground vapor. Trapped moisture leads to dangerous freeze-thaw degradation in sub-zero facilities. XPS provides far superior compressive strength and water resistance, making it the safer industry standard for sub-slab insulation.
Q: Why is custom XPS required for refrigerated transport rather than standard boards?
A: Refrigerated truck bodies contain irregular cavities, wheel wells, and structural frames. Standard rectangular boards cannot fit these spaces tightly. Custom-milled XPS guarantees exact dimensioning. It completely eliminates air gaps and stops thermal bridging. A perfect fit prevents condensation, saves valuable cargo space, and maintains the stringent temperature controls required during long-distance transit.
