EPS vs. XPS Foam Board: Which One is Better?

1. Introduction

Choosing the right insulation material is crucial for ensuring energy efficiency, structural integrity, and cost-effectiveness in construction. Two of the most commonly used foam boards are Expanded Polystyrene (EPS) and Extruded Polystyrene (XPS). While both serve similar functions, they differ significantly in performance, durability, and application. Understanding their differences helps in selecting the most suitable insulation for specific projects.

2. Understanding EPS (Expanded Polystyrene) Foam Board

EPS is a lightweight insulation material composed of tiny polystyrene beads that are expanded and fused together. It is known for its excellent thermal resistance and affordability. The manufacturing process involves steam expansion, which results in a closed-cell structure with small air pockets that enhance insulation properties. EPS is commonly used in residential and commercial construction, packaging, and even flotation devices.

3. Understanding XPS (Extruded Polystyrene) Foam Board

XPS is manufactured through a continuous extrusion process, producing a rigid, closed-cell foam with a smooth surface. This manufacturing technique gives XPS superior moisture resistance and higher compressive strength compared to EPS. Due to its enhanced durability, XPS is widely used in demanding applications such as below-grade insulation, roofing systems, and industrial settings.

4. Thermal Performance Comparison

The effectiveness of an insulation material is often measured by its R-value, which indicates thermal resistance. XPS typically has a higher R-value per inch (around R-5) compared to EPS (around R-3.6 to R-4.2). This means XPS provides better insulation per unit thickness, making it ideal for applications where space is limited. However, EPS maintains its R-value more consistently over time.

5. Moisture Resistance and Water Absorption

Moisture absorption can significantly impact the insulating properties of foam boards. XPS has a lower water absorption rate due to its denser, closed-cell structure, making it ideal for applications exposed to moisture, such as foundation insulation and wet environments. EPS, while somewhat moisture-resistant, can absorb more water over time, which may compromise its thermal efficiency.

6. Compressive Strength and Durability

XPS is notably more rigid and durable than EPS, with a higher compressive strength ranging from 15 to 60 psi. This makes it suitable for load-bearing applications, such as under concrete slabs. EPS, though less dense, can still provide adequate strength for many applications but may require additional reinforcement in high-stress environments.

7. Environmental Impact and Sustainability

EPS is generally more environmentally friendly than XPS, as it uses fewer blowing agents with high global warming potential (GWP). Both materials are recyclable, but EPS is more commonly repurposed. Sustainable construction initiatives often favor EPS due to its lower environmental impact.

8. Cost Comparison

EPS is typically more cost-effective than XPS, making it a preferred choice for budget-conscious projects. The price of XPS is higher due to its enhanced performance characteristics, but its long-term benefits, such as better moisture resistance and durability, can justify the investment.

9. Ease of Installation

Both EPS and XPS are easy to cut and shape, but XPS is more rigid, making it slightly harder to handle in certain applications. EPS, being lighter and more flexible, allows for quicker installation. Adhesion and compatibility with other materials are comparable between the two.

10. Fire Resistance and Safety Considerations

Neither EPS nor XPS is inherently fire-resistant, but both can be treated with fire retardants to improve safety. XPS has a slightly better fire performance due to its denser structure, but both require compliance with building codes and the use of protective barriers in construction.

11. Resistance to Pests and Biological Growth

Both EPS and XPS are susceptible to pest infestations if not properly sealed. However, XPS, due to its denser composition, is slightly more resistant to rodents and insects. Both materials resist mold and fungal growth when kept dry.

12. Applications in Roofing Systems

XPS is often preferred in roofing systems due to its higher compressive strength and moisture resistance. EPS can also be used but may require additional protective measures to maintain its integrity under harsh weather conditions.

13. Applications in Below-Grade Insulation

For below-grade applications, such as foundation insulation, XPS is the superior choice due to its low moisture absorption and high durability. EPS can still be used but may need additional waterproofing layers to maintain performance.

14. Applications in Wall Insulation

Both EPS and XPS work well in wall insulation. EPS is commonly used in insulated concrete forms (ICFs) and exterior insulation finishing systems (EIFS), while XPS is preferred for continuous insulation applications where moisture exposure is a concern.

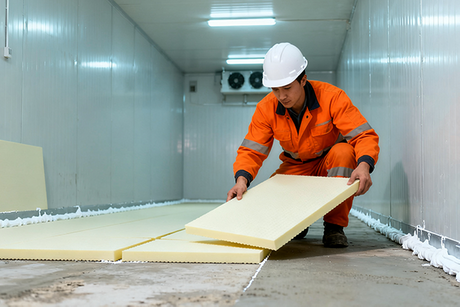

15. Cold Storage and Refrigeration Applications

XPS is the preferred choice for cold storage and refrigeration due to its high R-value and moisture resistance. EPS can also be used but may not perform as well in extreme temperature conditions.

16. Structural Insulated Panels (SIPs) and Foam Boards

EPS is widely used in SIPs due to its cost-effectiveness and thermal efficiency. While XPS can also be used, its higher cost and rigid nature make it less common in SIP construction.

17. Retrofitting and Renovation Projects

Both EPS and XPS are excellent choices for retrofitting insulation. EPS is easier to install due to its lighter weight, while XPS provides better performance in damp environments.

18. Industry Trends and Future Innovations

Advancements in insulation technology are leading to more sustainable and higher-performing materials. Research is focused on reducing the environmental impact of foam boards while enhancing their thermal efficiency and durability.

19. Pros and Cons Summary

Both EPS and XPS foam boards have their strengths and weaknesses. EPS is more affordable and environmentally friendly, making it a great choice for general insulation needs. XPS, on the other hand, excels in moisture resistance, durability, and compressive strength, making it ideal for demanding applications. The best choice depends on the specific requirements of a project, including budget, performance expectations, and environmental considerations.
