XPS vs. EPS Insulation Board: What Specifications Should Buyers Compare?

Commercial buyers, contractors, and architects face a critical material choice. You must actively decide between Extruded Polystyrene (XPS) and Expanded Polystyrene (EPS). These materials secure the thermal envelope for upcoming construction projects. Selecting the wrong rigid foam insulation leads to compromised thermal barriers. It also causes severe moisture retention in below-grade applications. You might even overspend heavily on unnecessary compressive capacity. Getting this decision right directly impacts energy efficiency and structural stability.

We will strip away confusing marketing claims. We compare both materials based on objective testing standards and practical application realities. You will learn how manufacturing differences dictate moisture tolerance and thermal resistance. We also guide you through matching specific board capabilities to precise wall assemblies and foundation requirements. You can then confidently specify the exact insulation needed for your specific building code.

Key Takeaways

• XPS provides a higher R-value per inch and superior moisture resistance out-of-the-box, making it the default for space-constrained or high-moisture environments.

• EPS offers a highly customizable, cost-effective alternative with stable long-term thermal performance, ideal for high-volume applications where thickness is not a limiting factor.

• Decision-making should prioritize three specific metrics: required R-value per inch, localized water absorption risk, and necessary compressive load capabilities.

• Both materials require careful evaluation of local building codes, specifically regarding vapor retarder requirements and environmental compliance (blowing agent regulations).

The Baseline: How Manufacturing Differences Dictate Performance

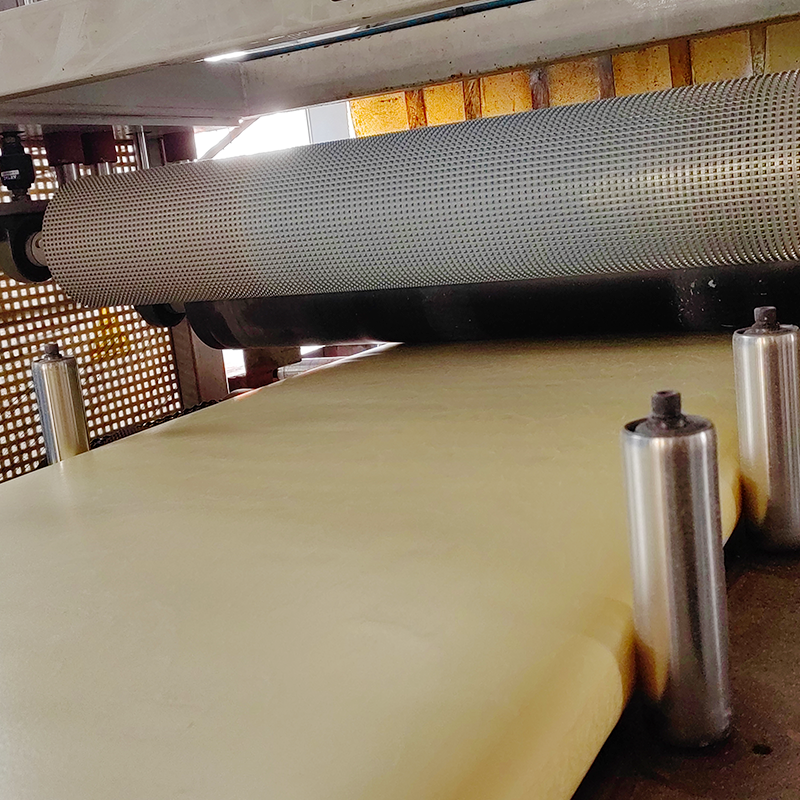

Let us define the core solution categories first. Extruded Polystyrene (XPS) undergoes a rigorous extrusion process. Manufacturers mix solid polystyrene crystals, special additives, and a blowing agent. They melt these components and force the liquid mixture through an extrusion die. It expands into a continuous, densely packed closed-cell structure. The result is a highly uniform, rigid board. This continuous matrix feels smooth and solid to the touch.

Expanded Polystyrene (EPS) relies on a completely different manufacturing process. Manufacturers expand small spherical polystyrene beads inside a specialized mold. They apply steam and heat to expand and fuse these beads together. This process creates a distinct cellular structure. It leaves tiny interstitial voids between the individual expanded beads. You can visibly see these fused circles on the surface of an EPS board.

We must focus on outcomes over features. This fundamental structural difference directly dictates performance. The continuous extrusion of XPS resists water intrusion naturally. It traps insulating gases effectively within its unbroken cells. The molded beads of EPS create a slightly porous matrix. Water can enter the tiny voids between the beads. However, this same porosity allows EPS to release water vapor and dry out faster. You must understand these structural roots. They explain every variation in moisture absorption, thermal resistance, and structural integrity across both materials.

XPS Insulation Board Specifications: Evaluating the Hard Numbers

We must break down the core evaluation dimensions objectively. You should always reference ASTM C578 classifications when reviewing materials. These standardized tests clarify expected performance in the field. Let us examine the three crucial performance metrics.

Thermal resistance remains your first major consideration. You can expect roughly R-5.0 per inch of thickness at 75°F for XPS. This provides excellent thermal resistance in very tight wall cavities. You must also consider the trust and risk factors transparently. We must address "R-value drift" realistically. XPS boards slowly off-gas their trapped blowing agents over time. Ambient air eventually replaces these highly insulating gases. The R-value drops slightly as the board ages. Always check the long-term thermal resistance (LTTR) benchmarks. LTTR gives you a much more realistic thermal expectation for the building's 50-year lifespan.

Next, evaluate the structural integrity. Standard ranges for XPS foam board density generally sit between 1.5 and 2.0+ pounds per cubic foot (pcf). Higher density correlates directly to superior physical durability. Dense boards survive rough job-site handling easily. They show significantly less crumbling and edge breakage during installation. Contractors spend less time repairing damaged panels before pouring concrete.

Finally, analyze the load-bearing capabilities. A major advantage of this material is its extreme XPS compressive strength. Manufacturers offer specialized grades ranging from 15 psi up to 100+ psi. You must identify when high compressive limits are strictly necessary. You absolutely need 40, 60, or 100 psi under heavy concrete slabs. Parking decks and industrial cold storage floors demand extreme load-bearing strength. Standard residential basement walls rarely require these premium industrial grades.

EPS vs XPS Insulation Board: Moisture Tolerance and Long-Term Reliability

The debate over water absorption remains highly active in the building industry. We rely on the ASTM C272 testing standard to separate fact from fiction. This test fully submerses insulation panels to measure volumetric water uptake. XPS typically absorbs less than 0.3% water by volume. It effectively blocks liquid water penetration through its continuous closed-cell matrix.

EPS behaves differently under complete submersion. It typically absorbs 1.0% to 3.0%+ water by volume. Sometimes it absorbs even more depending on the specific bead density. The tiny interstitial voids between the molded beads draw in moisture. When comparing an eps vs xps insulation board, you must understand the real-world implementation realities.

Let us compare continuous below-grade wet conditions. Industry professionals frequently debate field study results. Building science forums highlight a crucial physical dynamic. EPS absorbs more water quickly. However, it also dries out much faster than XPS. If the surrounding soil conditions allow proper drainage, EPS releases the trapped moisture. XPS blocks water entry well but can trap moisture indefinitely if water breaches the outer cells.

Vapor permeability also sharply separates these two materials. XPS acts as a semi-impermeable vapor retarder. It highly restricts moisture vapor from moving through the wall assembly. EPS is considerably more vapor-open. This trait impacts your wall assembly design significantly. A highly vapor-open design prevents trapped moisture inside the wood framing. You must match the board's permeability rating to your specific climate zone requirements.

Cost-to-Performance Ratio and Scalability

Financial evaluation drives most large-scale material procurement decisions. EPS generally costs 10-30% less per inch of thickness. This price difference matters heavily on massive commercial projects. You should evaluate the true cost per R-value. EPS often wins the pure thermal budget category. You must ensure the assembly has physical space. Thicker EPS boards require wider cavities to achieve the same R-value as XPS panels.

Customization provides another massive advantage for EPS manufacturing. Facilities easily custom-cut EPS into massive monolithic blocks. They shape it into complex tapers for flat commercial roofing systems. They quickly adapt it for complex architectural trim shapes. This scalability makes it perfect for heavy civil engineering projects.

XPS offers far less manufacturing flexibility. The extrusion process limits production sizes strictly. XPS is typically limited to standardized sheet sizes. Manufacturers rarely produce XPS thicker than 4 inches per single sheet. Contractors must layer multiple thin sheets if a design requires deeper insulation.

Table: Core Material Specifications Comparison

Application Shortlisting: Which Board for Which Assembly?

You must carefully match the board type to your specific assembly constraints. We recommend shortlisting materials based on environmental exposure and structural demand.

1. Below-Grade and Underslab Assemblies: High-load requirements default immediately to XPS. Heavy concrete slabs need premium compressive strength. Standard residential basement walls can use either material safely. XPS provides better insurance against continuous hydrostatic pressure from wet soil.

2. Above-Grade Exterior Walls: EPS remains highly effective here. It fits budget-friendly exterior continuous insulation (CI) projects perfectly. You can use it if exterior sheathing depth is unrestricted. XPS is strongly preferred for maximizing thermal resistance. Use it when dealing with narrow wall cavities or limited lot lines.

3. Commercial Roofing Systems: Contractors heavily favor EPS for tapered roof layouts. The customizability allows precise water drainage slopes. It also delivers highly stable long-term R-values. Conversely, XPS is highly favored in Protected Membrane Roof (PMR) assemblies. PMR systems expose the insulation directly to precipitation above the waterproof layer. The superior water resistance of XPS prevents roof waterlogging.

Conclusion

Our final assessment reveals a clear reality in construction planning. The choice rarely comes down to one material being universally better overall. It comes down to matching specific material failure points to your project's environmental risks. You must carefully evaluate space constraints, moisture exposure, and loading requirements.

Advise your buyers to verify structural load requirements strictly. Check wall cavity depth limits before finalizing any Request for Proposals (RFPs). Prompt them to request ASTM C578 compliance data sheets from manufacturers. Always review the exact XPS insulation board specifications for short-listed brands. These verified steps guarantee optimal thermal performance, regulatory compliance, and structural safety.

FAQ

Q: Is EPS or XPS better for underslab insulation?

A: XPS is the industry standard due to high compressive strength and low moisture absorption. However, high-density EPS (e.g., Type IX) is increasingly used as a cost-effective alternative if engineered correctly.

Q: Does XPS lose its R-value over time?

A: Yes, XPS experiences a slight degradation in thermal resistance (R-value drift) as trapped blowing agents escape, eventually stabilizing at its Long-Term Thermal Resistance (LTTR) rating.

Q: Can I use EPS below grade if water is present?

A: Yes, but appropriate drainage planes (like dimple mats) must be utilized, and designers must account for a potential temporary drop in R-value if the EPS becomes saturated.

Q: Which board is more environmentally friendly?

A: Historically, EPS has a lower global warming potential (GWP) because it utilizes pentane rather than HFCs. However, new XPS formulations utilizing HFO blowing agents are rapidly closing this compliance gap.
