How To Choose XPS Thickness for Under-Slab Insulation

Specifying under-slab insulation represents a critical juncture in modern construction. It is an intersection where thermal performance, structural integrity, and project budgets collide. Design professionals and contractors face a tough balancing act every day. Over-specifying board thickness or compressive strength routinely leads to massive, unnecessary material costs. Conversely, under-specifying these materials creates severe long-term risks. You might face thermal drift, building code failures, and deep-seated moisture issues.

We provide a structured solution to navigate these challenges safely. Our framework helps you size your xps foam board materials based on true R-value requirements. We account for specific heating setups, such as radiant floors, and evaluate actual structural load dispersion. By moving past simplified industry assumptions, you can optimize building performance. You will learn how to isolate thermal targets from structural capacities. This ensures you buy exactly what the building needs, nothing more and nothing less.

Key Takeaways

• XPS provides roughly R-5 per inch; standard slab requirements usually dictate 1-inch to 2-inch thicknesses depending on local climate zones.

• Radiant floor systems require a minimum of 2 to 3 inches (R-10 to R-15) to prevent downward heat loss.

• Do not confuse thickness with compressive strength. Concrete efficiently disperses load; a 15 psi or 25 psi board is often structurally sufficient, negating the need for thicker, ultra-high-pressure boards.

• Field modifications (e.g., ripping a 2-inch board to fit a 1-inch spec) compromise structural flatness and should be avoided in favor of subgrade adjustments.

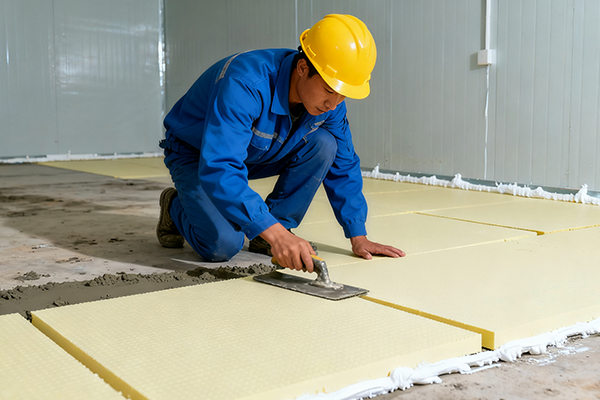

The Baseline: Matching XPS Foam Board Thickness to R-Value Targets

Your first step in specifying under-slab insulation is establishing the baseline thermal resistance required by law and climate. Building code compliance dictates minimum performance metrics. You should evaluate local energy codes, specifically the International Energy Conservation Code (IECC). The IECC determines the strict baseline sub-slab R-value requirements for your specific geographic region. Ignoring these codes can lead to failed inspections and costly retrofits.

Industry professionals rely on a standard metric known as the R-5 rule. Standard extruded polystyrene (XPS) delivers approximately R-5 per inch of thickness. This predictable thermal resistance makes calculations straightforward. However, you must align this inherent capability with your project climate. Let us look at how thickness translates into real-world applications across different environments.

Common Configurations

Selecting the right configuration prevents both energy waste and budget bloat. Most projects fall into one of two standard categories. You must assess the building envelope before choosing.

• 1-Inch Boards (R-5): This thickness provides a basic thermal break. It is often sufficient for mild climates. Builders also use it under unheated slabs where extreme frost heave is not a primary concern. It separates the cold earth from the concrete slab efficiently.

• 2-Inch Boards (R-10): This serves as the industry standard for moderate-to-severe climates. It helps achieve continuous insulation (CI) compliance. Many energy codes mandate a minimum of R-10 to prevent major heat transfer into the surrounding soil.

Here is a reference table illustrating standard under-slab configurations:

Long-Term R-Value Stability (Thermal Drift)

We must address the reality of insulation aging. Extruded polystyrene experiences R-value degradation over its lifespan. Manufacturers trap special blowing agents inside the closed-cell structure during production. Over the years, these blowing agents gradually off-gas and escape. Air replaces them. This physical process, known as thermal drift, slowly lowers the effective thermal resistance.

You cannot ignore thermal drift when designing buildings meant to last fifty years. If your project targets strict 20-year thermal performance, you must proactively compensate for this loss. We highly recommend factoring a 10% safety margin into your initial thickness calculations. If you absolutely need a guaranteed R-10 performance two decades from now, a slightly thicker specification or a conservative design approach will protect your building's energy efficiency.

Radiant Floor Systems: Why Sizing Up is Mandatory

Heated concrete slabs introduce entirely different thermodynamic challenges. You cannot rely on standard insulation baselines when installing radiant heating. These systems actively generate heat directly against the foundation base. This dynamic drastically changes the rules of engagement for insulation thickness.

The Downward Heat Loss Problem

Radiant heating systems alter internal thermodynamic dynamics. Heat travels toward cold. When you warm a slab to 75 degrees Fahrenheit, the frozen winter ground below becomes a massive thermal vacuum. The system aggressively drives heat downward into the colder ground if not adequately blocked. Without a robust barrier, your boiler or heat pump will run continuously. You will effectively pay to heat the earth beneath the building.

Target Thickness for Radiant

Because the temperature differential is so extreme, minimum thickness recommendations shift significantly. The standard 1-inch board is no longer adequate. For radiant floors, the minimum recommendation shifts to 2 to 3 inches of XPS. This achieves a crucial R-10 to R-15 rating. This elevated thermal resistance bounces the radiant energy back upward into the living space. It forces the heat to radiate through the room rather than bleeding into the subgrade.

Integration Requirements

Adding thickness alone will not stop thermal bridging. Heat behaves like water; it finds the path of least resistance. You must integrate the insulation system comprehensively. Proper detailing separates a highly efficient radiant floor from a mediocre one. You must address the following critical steps:

1. Perimeter thermal breaks: You must install vertical edge insulation. Heat travels laterally through the slab and escapes outward through the exterior foundation walls. A continuous vertical foam perimeter stops this outward thermal bridging.

2. Taping all board seams: Gaps between insulation panels allow heat to leak downward. You must tape all board seams using manufacturer-approved sealing tape. This ensures total thermal continuity across the entire footprint.

3. Using damping membranes: When embedding PEX tubing into the concrete, utilize damping membranes. They protect the tubing, manage expansion and contraction, and further separate the heating elements from structural friction points.

Compressive Strength vs. Thickness: The Over-Engineering Trap

A massive misconception plagues the construction industry regarding insulation strength. Engineers and architects often assume thicker foam panels inherently bear more weight. This fundamental misunderstanding leads directly to inflated material budgets. You must decouple thickness from compressive strength during the specification phase.

The "Thicker is Stronger" Myth

We need to clarify a basic manufacturing reality. Increasing board thickness does not inherently solve high-load requirements. Compressive strength relates to foam density, not its physical depth. For instance, a standard 1-inch board can be manufactured at 15 psi (e.g., Foamular 150). Alternatively, the exact same 1-inch thickness can be formulated at 25 psi (e.g., Foamular 250). Specifying a 3-inch board simply to achieve a 25 psi rating wastes money. You are buying unneeded thermal capacity just to secure a structural requirement.

Actual Load Dispersion

To understand what compressive rating you actually need, we must look at structural physics. Many older designs rely on a simplified "triangular load transfer" assumption. This model assumes a 45-degree angle of pressure radiating directly downward. It suggests the foam takes the brunt of a heavy point load. This assumption is scientifically flawed.

We should instead reference the Theory of Plates on Elastic Foundations. A rigid concrete slab distributes point loads over a remarkably wide area. Imagine an 8,000 lb forklift driving across a warehouse floor. The tire does not press 8,000 lbs directly onto the foam beneath it. The concrete slab bends slightly and spreads that immense weight across several square feet of the sub-base. The resulting pressure on any single square inch of foam is incredibly small.

Cost Optimization

Understanding this load dispersion unlocks massive cost savings. Real-world sub-slab pressures are drastically lower than traditional assumptions suggest. Using the elastic foundation theory, actual pressure on the foam often sits under 2 psi. Meanwhile, the outdated triangular model might assume a 20 psi load.

Do not default to thicker, premium high-pressure XPS boards out of blind caution. Specify the exact psi rating needed for your calculated dispersed load. A standard 15 psi or 25 psi board provides enormous structural support when paired with a properly engineered concrete slab. Downgrading the pressure specification safely can save up to 50% on raw material costs without compromising structural integrity.

Here is a summary chart comparing load calculation theories:

Moisture Retention and System-Level Defenses

Sub-slab environments are notoriously damp. Soil releases constant water vapor. Ground water tables fluctuate. Proper insulation must withstand this harsh, hidden environment for decades. Extruded polystyrene performs exceptionally well here, but you must still understand its limitations.

Absorption Realities

Manufacturers rightfully market XPS as highly moisture-resistant. Its closed-cell extrusion process repels liquid water effectively. However, independent 15-year field tests reveal a more nuanced reality. When buried in severe conditions with constant moisture exposure, the foam can retain trapped moisture. Over a decade and a half, water vapor slowly infiltrates the cell walls. This accumulated moisture slightly reduces its effective R-value, as water conducts heat far faster than trapped air.

Compensating via System Design

You cannot solve this moisture retention problem by simply adding more foam. Increasing the thickness to combat moisture is an inefficient strategy. Instead, you must focus on proper holistic system installation. Building a resilient defense requires multiple layers.

• Compacted Gravel Sub-Base: You must create a capillary break beneath the foam. A thick layer of washed, compacted gravel provides crucial drainage. It prevents ground water from pooling directly against the bottom of the insulation panels.

• Poly Vapor Diffusion Retarder: You must mandate the use of a continuous vapor barrier. A minimum 6-mil polyethylene sheet is standard. You place this retarder directly above or below the xps foam board, depending on regional drying requirements and local building codes. This plastic sheet physically blocks vapor migration, keeping the foam dry and protecting its R-value over the building's lifespan.

Field Realities: Navigating Material Shortages and Installation Limits

Perfect blueprints rarely survive contact with the actual job site. Supply chain volatility and inventory limits frequently force last-minute decisions. How you handle these field realities determines the success of your foundation pour.

The Procurement Problem

Consider a very common procurement problem. Your construction drawings specify 1-inch, 25 psi boards for a large commercial floor. The concrete trucks are scheduled for Thursday. However, local suppliers only stock 2-inch boards. They do not have the 1-inch material available. The project manager faces immense pressure to keep the schedule moving. What happens next?

The Modification Risk

A dangerous instinct takes over. Workers often try to modify the available material. We strongly advise against field-ripping or cutting 2-inch boards in half to match a 1-inch specification. Slicing thick panels horizontally on a dusty job site is practically impossible to do accurately.

Field ripping yields highly uneven surfaces. It wastes significant labor hours. More importantly, it compromises the uniform support required for the concrete pour. If the foam base is uneven, the poured concrete slab will develop varying thicknesses. This creates unpredictable stress points, leading to structural cracking shortly after the slab cures.

The Practical Pivot

You need a smarter practical pivot. Do not attack the insulation material. Attack the dirt. If forced to use thicker boards due to local availability, the most cost-effective field adjustment is excavating the subgrade 1 inch deeper. Removing a minimal layer of compacted dirt is far safer than attempting to alter the foam board's manufactured thickness. This strategy preserves the structural integrity of the insulation, improves your total R-value, and keeps the concrete slab perfectly uniform.

Conclusion

Choosing the correct under-slab insulation requires careful analysis, not guesswork. You must separate thermal needs from structural assumptions. Doing so prevents unnecessary spending while guaranteeing long-term building performance.

• Final Decision Framework: Choose your thickness strictly based on the required R-value. Factor in your specific climate zone and whether you are utilizing a radiant heating type. Isolate compressive strength as a completely separate specification metric.

• Actionable Next Step 1: Review architectural load assumptions with your structural engineer immediately. Ask them to run load dispersion models using the elastic foundations theory to ensure you are not over-specifying your psi rating.

• Actionable Next Step 2: Confirm local supplier inventory weeks before finalizing your trench depths. Knowing what material sits on local shelves prevents last-minute, risky field modifications.

FAQ

Q: What is the standard R-value per inch of XPS foam board?

A: Extruded polystyrene provides approximately R-5 per inch of thickness. However, you should note this value can slightly decrease over decades due to thermal drift, as trapped blowing agents slowly escape and air replaces them.

Q: Can I use EPS or Polyiso instead of XPS under a slab?

A: Yes. Expanded Polystyrene (EPS) is more cost-effective and holds R-value well over time but requires greater thickness to match thermal targets. Polyisocyanurate (Polyiso) offers higher R-value per inch but comes at a premium cost and behaves differently around moisture.

Q: Do I still need a vapor barrier if using 2-inch XPS?

A: Yes. While the closed-cell structure acts as a moisture retarder, building codes and best practices still require a dedicated polyethylene vapor barrier. This 6-mil plastic sheet stops aggressive ground moisture migration from penetrating into the concrete.
