Specifying the wrong sub-screed insulation creates massive risks for any construction project. Underfloor heating failures often lead to inefficient heat transfer, severe floor settlement, and cracked finishes. Builders rely heavily on Expanded Polystyrene (EPS) and Extruded Polystyrene (XPS) as the two dominant insulation categories. Both materials provide baseline thermal resistance for radiant applications. However, selecting the right board requires careful evaluation of the specific environment. You must analyze precise compressive loads, moisture exposure during installation, and total floor height constraints.
We will explore the critical structural and thermal differences between these two solutions. You will discover how moisture dynamics and compressive strength directly impact the longevity of radiant heating systems. Finally, we will guide you in choosing the perfect material to ensure structural integrity and optimal thermal performance across various subfloor scenarios.
Key Takeaways
Thermal & Moisture Dynamics: XPS maintains its R-value more reliably under wet-screed applications due to its closed-cell structure and near-zero water absorption.
Structural Integrity: XPS offers superior compressive strength (typically 300+ kPa), mitigating the risk of micro-cracking in rigid floor finishes like tile or stone.
Installation Efficiency: Utilizing grooved XPS for underfloor heating reduces floor buildup height and eliminates the labor of installing separate pipe-fixing tracks.
The Engineering Demands of Floor Heating Insulation
Radiant heating systems emit thermal energy in all directions. Slabs and subfloors naturally absorb this energy. Engineers call this a "heat sink" effect. The primary goal of an insulation board is directional control. It must force 100% of the generated thermal energy upward into the living space. Downward heat loss wastes immense energy and severely reduces system responsiveness.
Specifiers must evaluate insulation based on precise engineering demands. We establish three non-negotiable metrics for proper evaluation:
Thermal Resistance (R-value per inch): The material must aggressively block downward heat transfer regardless of the subfloor temperature.
Long-Term Structural Stability: The board must withstand continuous live loads and heavy static loads without yielding.
Alkaline Moisture Resistance: The cellular structure must repel heavy alkaline water released during the curing process of concrete or liquid screed.
Failing to address these metrics introduces massive implementation risks. "Compression creep" stands out as the most dangerous threat. This phenomenon occurs when low-density insulation compresses gradually over years of continuous load. As the foam compresses, the floor above it drops. This leads to catastrophic subfloor failure. Grout lines crack. Natural stone tiles shatter. Heating pipes experience shear stress and eventually leak. You must select an insulation density capable of preventing compression creep entirely.
The XPS and EPS Difference: Thermal Conductivity and Moisture Resistance
Understanding insulation performance requires examining the manufacturing process. The production method directly dictates the cellular structure of the final product. This cellular structure ultimately defines the xps and eps difference.

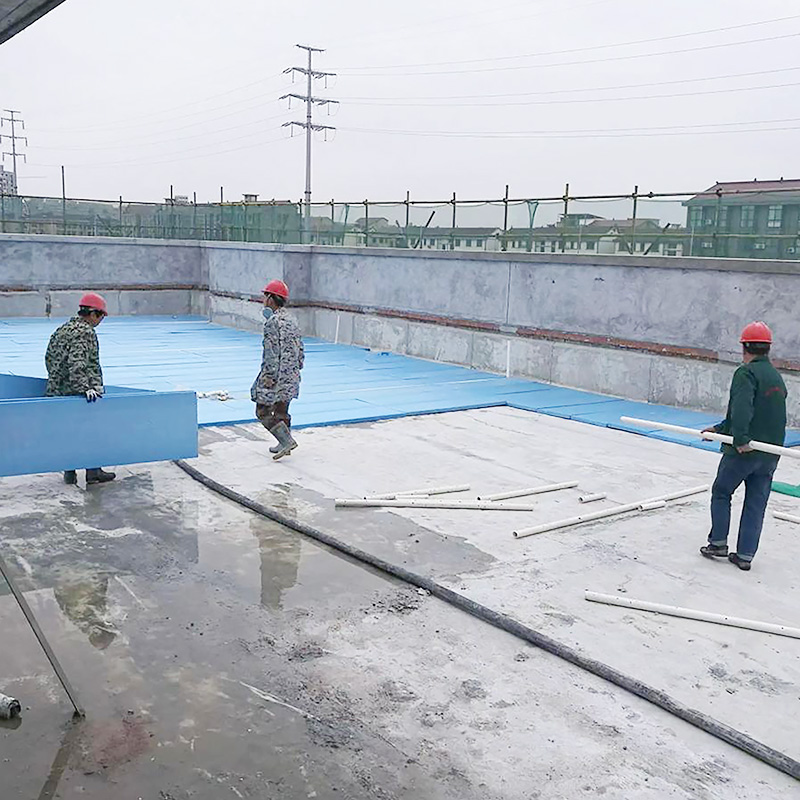

Manufacturers produce XPS through a continuous extrusion process. They push molten polystyrene through a die under high pressure. This forms a tight, continuous, closed-cell matrix. Conversely, they produce EPS through a molding process. Steam expands small polystyrene beads inside a mold until they fuse together. This fusion leaves microscopic interstitial voids between the individual beads.
Extrusion traps insulating gases much more efficiently than bead molding. Consequently, XPS typically provides a robust R-5.0 per inch of thickness. Molded EPS generally offers a lower thermal resistance, ranging from R-3.6 to R-4.2 per inch. When strict floor height constraints limit your insulation thickness, higher thermal resistance per inch becomes critical.
Moisture presents another highly variable challenge. Wet screed installations introduce significant liquid into the subfloor assembly. Liquid screed is highly alkaline. The microscopic voids between molded EPS beads act as tiny sponges. They can absorb this alkaline moisture from the wet screed. Moisture intrusion temporarily degrades the thermal performance of the board. The dense, extruded matrix of XPS resists water intrusion almost completely.
Standard industry testing protocols validate these field observations. ASTM C578 serves as the benchmark standard for polystyrene thermal insulation. Under rigorous testing, XPS consistently demonstrates a moisture absorption rate below 0.3% by volume. In contrast, standard EPS can absorb up to 2.0% to 4.0% moisture by volume. This fundamental difference makes extruded boards vastly superior for wet-trade applications.
Material Type | Manufacturing Process | Average R-Value (per inch) | Water Absorption (ASTM C578) |
Extruded Polystyrene (XPS) | Continuous die extrusion | R-5.0 | < 0.3% by volume |
Expanded Polystyrene (EPS) | Steam-expanded bead molding | R-3.6 to R-4.2 | 2.0% - 4.0% by volume |
Compressive Strength: Preventing Deflection and Finish Failure
Compressive strength connects directly to the longevity of your finished floor. We measure this critical metric in kilopascals (kPa). A high kPa rating ensures the insulation will not deflect under pressure. Deflection allows the rigid layers above to flex. Micro-flexing destroys rigid floor finishes rapidly.
The load-bearing realities of modern construction demand robust materials. Standard EPS boards typically offer a compressive strength between 70 kPa and 150 kPa. This suits lightweight applications perfectly. However, XPS commonly delivers 250 kPa, 300 kPa, or even 500+ kPa. This immense density provides a rock-solid foundation for the heaviest architectural finishes.
Applying an application lens makes this requirement clear. High compressive strength is absolutely mandatory for heavy rigid finishes. Natural stone, marble slabs, and large-format porcelain tiles tolerate zero deflection. If the underlying insulation compresses by even a millimeter, the tile will crack under foot traffic. High-traffic commercial spaces face dynamic live loads daily. Retail showrooms, hotel lobbies, and automotive display floors require the unyielding support of dense extruded foam.
Common Mistake: Installers sometimes place soft 70 kPa EPS under large-format tiles to save upfront budget. Within a year, the constant foot traffic compresses the foam, causing the grout to powder and the tiles to shear.
We must acknowledge a point of transparency. High-density EPS products do exist in the commercial market. Manufacturers can compress EPS beads much tighter to increase the kPa rating. However, reaching structural parity with extruded performance often negates the initial EPS cost advantage. Heavily densified EPS requires more raw material and processing time. Therefore, specifiers often pivot back to extruded boards when high loads are present.
Streamlining Rollout: Grooved XPS for Underfloor Heating
Traditional radiant floor installations require complex, multi-layered assemblies. Contractors lay insulation, add vapor barriers, install plastic clip rails, and staple down piping before pouring screed. This process demands immense specialized labor. Modern manufacturing offers a vastly superior alternative.
Manufacturers now produce CNC-routed, factory-milled insulation boards. A pre-routed XPS foam board for floor heating is rapidly becoming the standard for low-profile retrofits and dry-system installations. These boards feature precise, serpentine channels cut directly into the foam. Installers simply press hydronic PEX or AL-PEX pipes directly into these grooves.
Contractors constantly weigh efficiency against unit material costs. Utilizing grooved XPS for underfloor heating carries a higher upfront material price per square meter. However, this product eliminates massive inefficiencies on the job site. It removes the need for separate tracking systems. It eliminates the labor hours spent stapling down miles of pipe. In completely dry systems, it eliminates screed curing times entirely. You lay the grooved board, insert the pipe, apply aluminum heat spreader plates, and install the final floor immediately.
Scalability becomes a massive advantage for large developments. Standardized grooved boards allow contractors to standardize pipe spacing flawlessly. Factory-milled channels ensure pipes sit at the exact same depth and distance apart. This consistency guarantees perfectly even heat distribution across thousands of square feet. For rapid commercial deployments, the speed of pressing pipes into pre-milled tracks is unbeatable.
Decision Framework: Shortlisting the Right Insulation for Your Project
Choosing the correct sub-screed insulation does not need to be complicated. By analyzing your project constraints, you can confidently specify the right board. Use the following evaluation matrix to guide your decision.
When to choose EPS: Specify molded polystyrene when you have deep floor buildups available. It excels in projects with strict upfront budget constraints. EPS performs admirably under lightweight, flexible floor finishes. Engineered wood, luxury vinyl plank (LVP), and heavy carpeting do not require massive compressive strength to survive.
When to choose XPS: Specify extruded polystyrene for all wet-screed applications. Choose it when installing heavy rigid floor finishes like natural stone or large-format tile. It is the mandatory choice for scenarios demanding high thermal resistance within a very thin structural profile.
When to specify Grooved XPS: Select factory-milled boards for retrofit projects with strict height restrictions. They provide the perfect solution for timber suspended floors where pouring heavy screed is impossible. Fast-track commercial developments requiring rapid installation rely heavily on grooved systems to meet tight deadlines.
Always verify local building codes and compliance regulations. Specifiers must ensure they meet the required minimum R-values. Ground floors interacting directly with the earth require significantly higher thermal resistance than intermediate floors separating two heated spaces. Cross-reference your selected board's R-value against local energy efficiency mandates before purchasing.
Conclusion
Specifying sub-screed insulation determines the long-term success of any radiant heating system. While EPS remains a highly viable and budget-friendly baseline for lightweight applications, XPS provides vastly superior risk mitigation. Its closed-cell matrix repels alkaline moisture from wet screed. Its massive compressive strength prevents deflection, completely protecting expensive rigid floor finishes from micro-cracking.
Your next step is to calculate your exact floor buildup allowance. Determine the minimum R-value required by your local building codes. Then, calculate the dynamic live loads your finished floor will experience to establish the necessary kPa rating. Matching these three metrics will reveal your ideal material.
Do not leave your structural integrity to chance. Request technical data sheets for both standard and grooved boards. Order product samples to evaluate the cellular density firsthand. Consult with a qualified engineering team to run project-specific load calculations before breaking ground.
FAQ
Q: What thickness of XPS foam board for floor heating do I need?
A: The required thickness depends entirely on your subfloor type and local building regulations. Uninsulated concrete slabs resting on the ground typically require 50mm to 100mm to prevent heat loss. Intermediate floors between heated spaces may only require 20mm to 30mm. Always consult local energy codes to ensure compliance.
Q: Can I route my own grooves into standard EPS or XPS boards?
A: While technically possible, site-routing creates massive implementation problems. It generates dangerous amounts of toxic polystyrene dust. Hand-routing leads to inconsistent pipe depths, causing uneven floor heating. Furthermore, aggressive site-milling compromises the board's structural integrity compared to factory-milled grooved boards.
Q: Is an additional vapor barrier needed when using XPS under screed?
A: Yes. While extruded polystyrene is highly moisture-resistant, a dedicated slip membrane or Damp Proof Membrane (DPM) remains standard practice. The membrane prevents wet screed from flowing down into the joints between the insulation boards. This ensures compliance with structural building standards and prevents thermal bridging.
