Choosing the right insulation for below grade construction is one of the most important decisions in building design. Subsurface environments expose insulation materials to constant soil pressure, moisture infiltration, and long-term thermal challenges. Two of the most widely used solutions are Expanded Polystyrene (EPS) and Extruded Polystyrene (XPS). At first glance, both appear similar—rigid foam panels derived from polystyrene—but their performance characteristics, cost profiles, and durability in underground conditions are different enough to significantly impact a project’s success.
This article provides a focused comparison of EPS vs XPS specifically for below grade insulation, highlighting where each material excels, where it falls short, and how builders can make the right choice.
The Role of Below Grade Insulation in Construction
Why Below Grade Insulation is Critical for Energy Efficiency
Insulation below grade plays a crucial role in reducing thermal bridging between soil and foundation walls. Without adequate insulation, heat transfer through concrete walls and slabs results in substantial energy losses, increased heating and cooling demands, and compromised indoor comfort. Unlike above-grade walls, soil temperature remains relatively stable but often cooler than conditioned interior spaces, meaning continuous insulation is vital for energy-efficient performance.
Common Challenges in Subsurface Environments
Below grade environments introduce unique stresses: persistent contact with moisture, fluctuating hydrostatic pressure, potential freeze-thaw cycles, and soil acidity. These conditions can degrade insulation performance if the wrong material is chosen. The ideal insulation must resist water absorption, maintain compressive strength, and provide stable R-values throughout decades of service.
Materials Typically Considered for Below Grade Insulation
While spray foams and mineral wool have niche applications, rigid foam boards—specifically EPS and XPS—are the industry’s most common below grade solutions. Their lightweight panels, structural integrity, and relatively straightforward installation make them a practical choice for foundations, basements, and underslab insulation.
Expanded Polystyrene (EPS) for Below Grade Applications
Core Properties of Expanded Polystyrene (EPS)
Expanded Polystyrene (EPS) is created by expanding polystyrene beads in a mold using steam. The result is a closed-cell structure with varying densities tailored for construction needs. EPS has an initial R-value of approximately 3.6–4.2 per inch and comes in multiple compressive strength ratings, making it adaptable to both light and heavy load applications. Its affordability and widespread availability make it particularly attractive for residential projects.
Moisture Resistance and Long-Term Performance
Although EPS is a closed-cell foam, its structure is more open compared to XPS, which means it can absorb small amounts of water under constant exposure. However, high-density EPS varieties have shown excellent long-term performance in field tests, maintaining insulation values even in wet conditions. Proper drainage and waterproofing are essential to optimize EPS in below grade applications.
Cost Advantages and Value Considerations
EPS generally costs 10–30% less than XPS, depending on regional supply chains. This lower upfront investment makes it highly appealing for projects with strict budget constraints. Despite its lower cost, EPS often delivers comparable long-term performance when installed with proper waterproofing, making it a strong value option.
Best Situations for Choosing EPS
EPS is ideal for underslab insulation, residential basements, and areas where moderate soil moisture exists but not extreme hydrostatic pressure. Its affordability allows builders to achieve energy code compliance without overextending budgets, particularly in low-rise and mid-rise construction.
Extruded Polystyrene (XPS) for Below Grade Applications
Key Characteristics of XPS Insulation

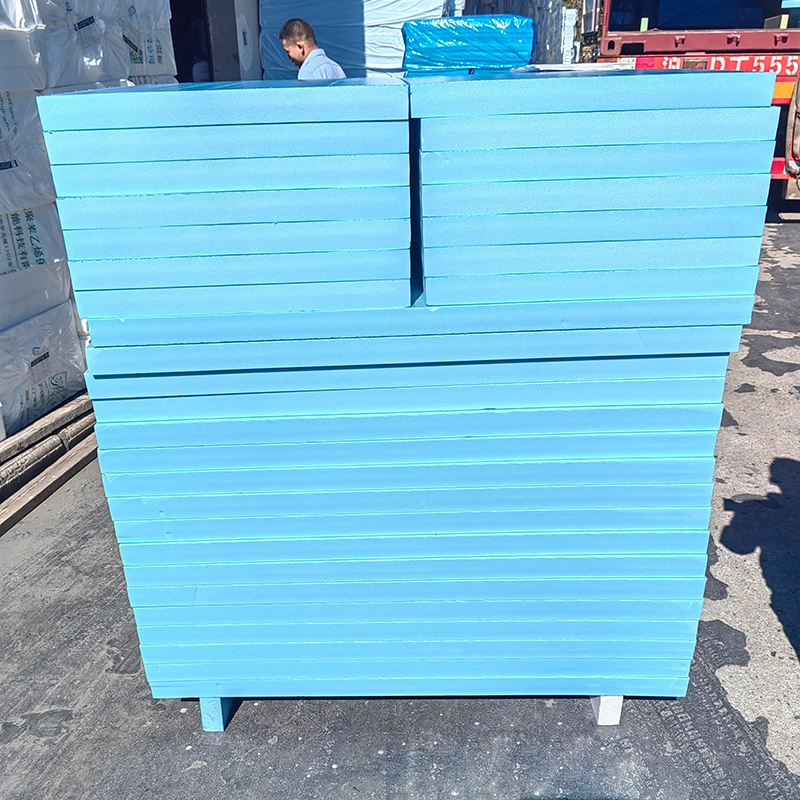

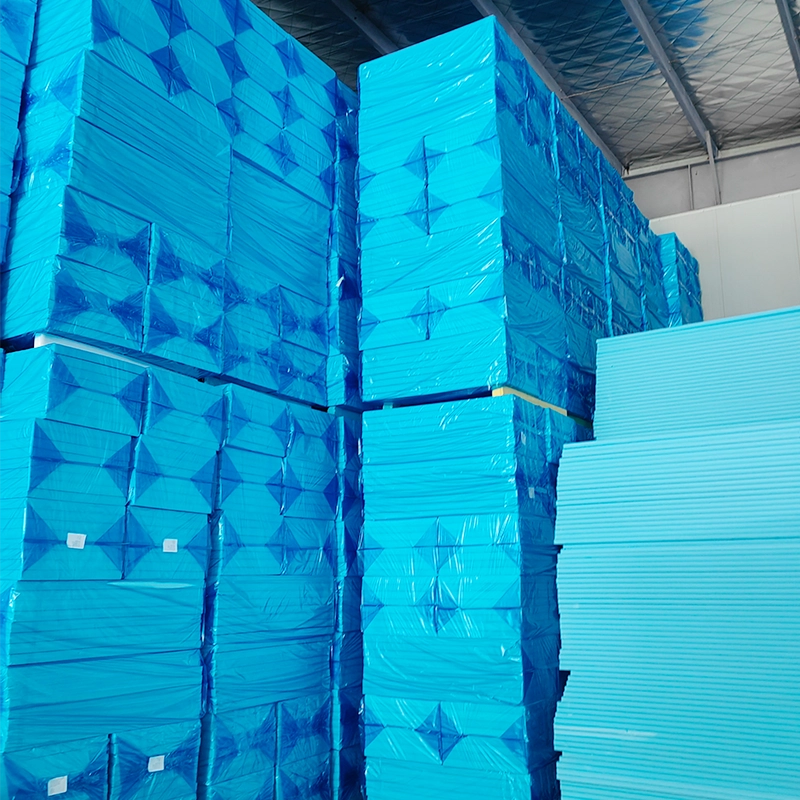

XPS insulation is manufactured through an extrusion process that produces a uniform, closed-cell structure. This gives XPS higher density and a slightly higher R-value per inch (around 4.5–5.0) compared to EPS. Its compressive strength is robust, making it suitable for high-load applications like parking garages, commercial basements, and heavy slab construction.
How XPS Performs in Wet or Harsh Soil Conditions
XPS demonstrates superior resistance to water absorption thanks to its tighter closed-cell structure. This makes it a strong candidate for environments with high groundwater levels or persistent freeze-thaw cycles. Even with prolonged soil contact, XPS panels typically maintain structural integrity and thermal resistance.
Cost Profile and Availability
XPS insulation is more expensive than EPS, often 20–40% higher in material cost. However, contractors may justify the higher price due to its reliable performance in moisture-laden soils and demanding structural environments. Its availability is generally consistent across North America and Europe, though supply shortages can affect pricing.
Common Uses of XPS Below Grade
Builders often specify XPS for commercial projects, retaining walls, inverted roofing systems, and underslab areas exposed to heavy mechanical loads. It is frequently chosen in cold climates where freeze-thaw durability is paramount.
EPS vs XPS: Direct Performance Comparison
Compressive Strength and Load-Bearing Capacity
XPS typically provides higher compressive strength (25–100 psi) compared to EPS (10–60 psi, depending on grade). For high-traffic areas or commercial loads, XPS is often preferred, though high-density EPS grades can bridge much of this gap at a lower cost.
Water Absorption and Moisture Management
While both are closed-cell foams, XPS absorbs less water over time. In direct soil contact or submerged applications, XPS retains R-value better. EPS, however, can still perform effectively if protected with drainage boards and waterproof membranes.
R-Value Stability Over Time
EPS maintains a stable R-value throughout its lifespan because it contains only air within its cells. XPS, on the other hand, initially has a higher R-value but can lose some effectiveness over decades as blowing agents dissipate. Long-term field studies often show EPS catching up to XPS in real performance.
Environmental Impact and Sustainability
EPS uses air as its blowing agent, making it more environmentally friendly compared to XPS, which often relies on hydrofluorocarbons (HFCs) with higher global warming potential. Many builders seeking green certifications prefer EPS for this reason.
Comparative Cost-Performance Analysis
| Property | EPS (Expanded Polystyrene) | XPS (Extruded Polystyrene) |
| Initial R-Value per Inch | 3.6–4.2 | 4.5–5.0 |
| Long-Term R-Value Stability | Very stable | Slight decline over time |
| Compressive Strength | 10–60 psi (varies) | 25–100 psi |
| Water Absorption | Moderate | Very low |
| Cost | Lower | Higher |
| Environmental Impact | Lower GWP, recyclable | Higher GWP, limited recycle |
| Best Fit | Residential, slabs | High-load, wet soils |
Installation Considerations for EPS and XPS
Handling and Cutting Differences
Both EPS and XPS are lightweight and easy to cut with standard tools. However, EPS can produce more bead fragments, requiring cleanup. XPS’s denser structure makes it slightly easier to cut clean lines for precise fits.
Compatibility with Waterproofing Systems
EPS and XPS both integrate well with membranes and drainage boards, but EPS requires particular attention to waterproofing since it is more permeable to water. Proper sealing ensures longevity.
Longevity of Performance After Installation
EPS demonstrates stable thermal resistance for decades, while XPS’s long-term performance depends on how much of its blowing agent remains in the cells. Both can exceed 50 years of useful service if installed correctly.
Cost vs. Performance Trade-offs in Real Projects
When Lower Upfront Cost Wins (EPS Advantage)
Residential builders often favor EPS because the cost savings are substantial, especially when multiple foundation walls or large slab areas are involved. With effective waterproofing, EPS delivers nearly the same performance at a fraction of the cost.
When Long-Term Durability Justifies Cost (XPS Advantage)
In infrastructure or high-rise projects, the extra cost of XPS is justified by its compressive strength and moisture resistance. For example, in underground parking or chilled storage facilities, XPS outperforms EPS by sustaining load and resisting water.
Case Examples in Residential vs. Commercial Projects
Residential basements in moderate climates benefit most from EPS, while commercial foundations, retaining walls, and cold-region projects consistently lean toward XPS. The right choice often reflects both budget priorities and environmental conditions.
Choosing the Right Insulation: Decision Framework
Soil and Climate Conditions as Key Factors
Wet, clay-rich soils and cold climates lean toward XPS, while dry soils and temperate climates make EPS a cost-effective alternative. Projects with limited budgets should start with EPS, but where performance failures would be catastrophic, XPS may be worth the investment. If sustainability is a priority, EPS generally offers a greener profile. However, XPS may still be chosen where long-term structural reliability outweighs environmental considerations.
Future Trends in Below Grade Insulation
Innovations in EPS and XPS Manufacturing
EPS manufacturers are producing higher-density grades with better water resistance, narrowing the performance gap with XPS. Meanwhile, XPS makers are transitioning to lower-GWP blowing agents to improve sustainability.
Regulatory Shifts Influencing Insulation Choices
Energy codes increasingly require continuous insulation, while environmental regulations push manufacturers toward sustainable materials. EPS, with its lower GWP profile, may gain further traction as regulations tighten.
Conclusion
Both Expanded Polystyrene (EPS) and Extruded Polystyrene (XPS) are proven solutions for below grade insulation, but each excels under different conditions. EPS offers stable long-term performance, a lower cost, and a greener footprint—making it well-suited for residential and budget-conscious projects. XPS, with its superior moisture resistance and compressive strength, remains the top choice for high-load or high-moisture environments.
By weighing soil conditions, budget, and sustainability priorities, builders can make an informed decision that ensures energy efficiency and durability for decades.
FAQs
1. Is Expanded Polystyrene (EPS) safe for below grade use?
Yes. EPS is widely used below grade when paired with effective waterproofing and drainage systems. Its stable R-value makes it a reliable insulation choice.
2. Does XPS always outperform EPS in wet soil?
Not always. While XPS resists water absorption better, high-density EPS can perform comparably with proper installation.
3. Which insulation is more cost-effective in residential construction?
EPS is typically more cost-effective due to its lower price point and adequate performance in most residential conditions.
4. How long can EPS and XPS insulation last underground?
Both materials can last 50 years or more when installed correctly, though their performance may differ depending on soil and moisture exposure.
5. Can EPS be recycled after its service life?
Yes. EPS is recyclable, and many regions have established collection and recycling programs for polystyrene products.
