Taichun Thermal Insulation Fireproof Xps Foam Board for Roof

Share to:

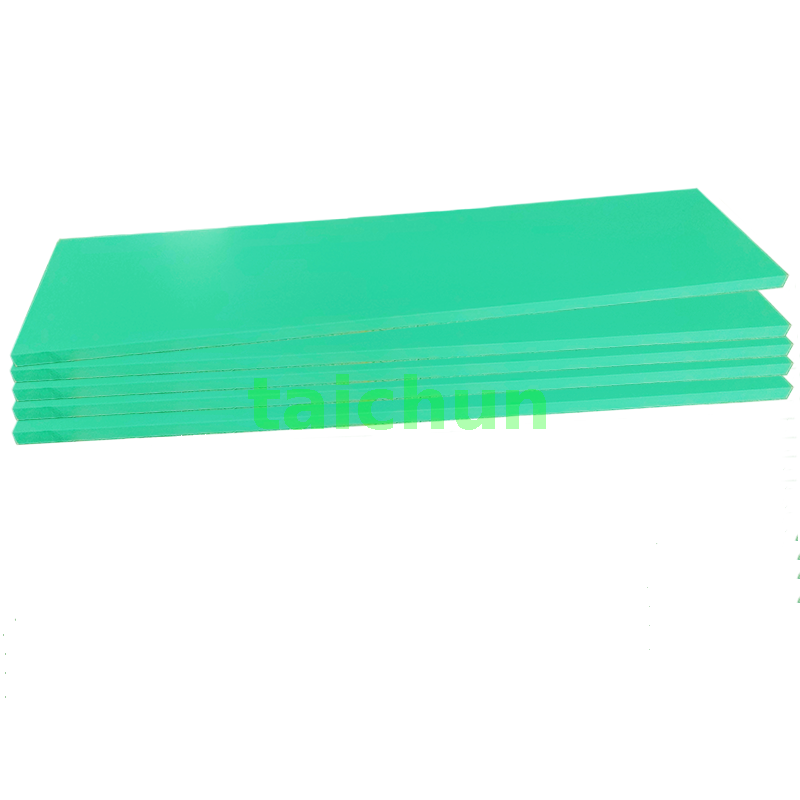

Taichun Thermal Insulation Fireproof Xps Foam Board for Roof

Shanghai Taichun Energy Saving Technology Co., Ltd. offers the Taichun Thermal Insulation Fireproof XPS Foam Board for Roof. Made from high-quality polystyrene resin, these boards feature a closed-cell honeycomb structure. This design ensures optimal thermal and sound insulation, moisture resistance, and durability, making them ideal for modern building ceilings.

With a commitment to environmental sustainability, Taichun’s XPS foam boards provide reliable heat preservation and structural stability. They are designed to meet diverse building needs, enhancing both performance and aesthetic appeal.

Availability:

Quantity:



Inquire Add to Basket

Product Introduction

Extruded ceiling panels are crafted from high-quality polystyrene resin and other environmentally friendly additives, utilizing precision extrusion technology. They feature a continuous and uniform closed-cell honeycomb structure, which grants them numerous excellent properties. These high-performance, multifunctional insulation materials are ideal for modern building ceilings, providing heat preservation, thermal insulation, sound insulation, and structural stability.

Product Specifications

Physical And Mechanical Properties
Item		Unit	Performance
			Smooth Surface
			X150	X200	X250	X300	X400	X450	X500
Compressive strength		Kpa	≥150	≥200	≥250	≥300	≥400	≥450	≥500
Size	Length	MM	1200/2000/2400/2440
	Width	MM	600/900/1200
	Thickness	MM	10/20/25/30/40/50/60/70/80/100
Water absorption rate, water seepage 96h		%(Volume fraction)	≤1.0		≤1.0
GB/T 10295-2008 Thermal Conductivity	Average temperature of 25℃	W/(m.K)	≤0.034			≤0.033
Density		kg/m³	28-38
Remark	Product size, density, compressive strength, thermal conductivity support customization

Taichun Thermal Insulation Fireproof Xps Foam Board for Roof

Product Advantage

1. Insulation

XPS foam boards provide excellent thermal insulation, helping to regulate indoor temperatures. This reduces energy consumption for heating or cooling and lowers energy bills while improving overall comfort.

2. Moisture Resistance

These boards are highly resistant to moisture, making them ideal for use in high-humidity areas such as bathrooms and basements. They help prevent mold, mildew, and rot, extending the lifespan of the roof and improving air quality.

3. Lightweight

XPS foam boards are significantly lighter than traditional materials like concrete or plaster, making them easier to handle and install. This results in reduced labor costs and quicker installation times.

4. Durability

XPS foam boards are durable and resistant to compression, impact, and wear. They also resist pests like termites, ensuring the material maintains its integrity over time and reducing the need for repairs.

Product Uses

1、Cold storage cold chain insulation

2、Building roof insulation

3、Steel structure roof

4、Building wall insulation

5、Building ground moisturising

6、Square ground

7, Ground frost control

8, Central air-conditioning ventilation ducts

9, Airport runway heat insulation layer

10, High-speed railway roadbed, etc.

FAQ

Q: What is the Taichun Thermal Insulation Fireproof XPS Foam Board used for?

A: The Taichun XPS Foam Board is ideal for roof insulation, moisture resistance, and thermal and sound insulation in modern buildings. It is also used in cold storage, steel structures, and ground moisture control.

Q: How does the Taichun XPS Foam Board help with energy savings?

A: The XPS Foam Board provides excellent thermal insulation, helping to maintain indoor temperatures and reduce energy consumption for heating or cooling, ultimately lowering energy bills.
