Shanghai Taichun Energy Saving Technology Co., Ltd. offers the 1cm-100cm B1 Grade Extruded Board XPS Exterior Wall Foam Board, an excellent insulation solution for modern construction. Ideal for both new builds and renovations, this foam board significantly enhances thermal insulation, reducing energy usage and improving comfort levels in buildings.Designed for use in exterior walls, it helps meet global energy efficiency and sustainability standards. With excellent moisture resistance, durability, and fire safety properties, this product is an essential choice for residential, commercial, and public infrastructure projects.
The 1cm-100cm B1 Grade Extruded Board XPS Exterior Wall Foam Board is designed to provide excellent insulation and durability for exterior wall applications. Available in a range of thicknesses from 10mm to 100mm, it offers superior compressive strength, ranging from ≥150 Kpa to ≥500 Kpa, depending on the grade (X150 to X500). The foam board is lightweight, with a density of 28-38 kg/m³, and has a low water absorption rate of ≤1.0%, ensuring reliable performance even in moist conditions.
The board’s thermal conductivity, ranging from ≤0.034 W/(m·K) to ≤0.033 W/(m·K) at an average temperature of 25°C, ensures excellent thermal insulation, keeping buildings comfortable while reducing energy costs. Available in various sizes (1200/2000/2400/2440 mm length and 600/900/1200 mm width), this product can be customized to meet specific requirements, offering flexibility and adaptability for various construction needs.
Physical And Mechanical Properties
Item
Unit
Performance
Smooth Surface
X150
X200
X250
X300
X400
X450
X500
Compressive strength
Kpa
≥150
≥200
≥250
≥300
≥400
≥450
≥500
Size
Length
MM
1200/2000/2400/2440
Width
MM
600/900/1200
Thickness
MM
10/20/25/30/40/50/60/70/80/100
Water absorption rate, water seepage 96h
%(Volume fraction)
≤1.0
≤1.0
GB/T 10295-2008 Thermal Conductivity
Average temperature of 25℃
W/(m.K)
≤0.034
≤0.033
Density
kg/m³
28-38
Remark
Product size, density, compressive strength, thermal conductivity support customization
Product Advantage

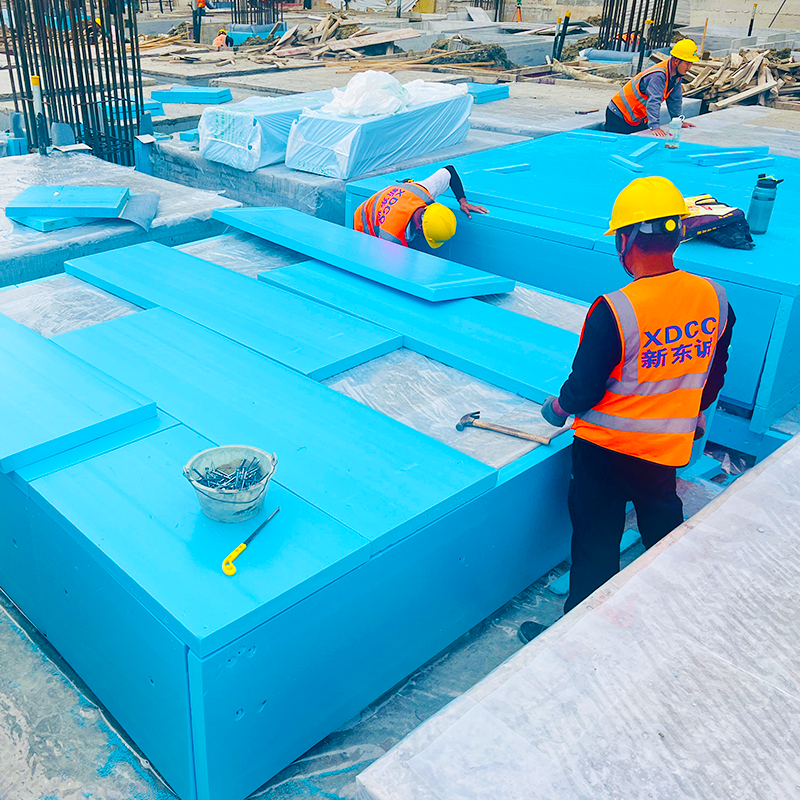

● Ease of Installation: Lightweight and easy to handle, the foam boards can be cut and installed with ease. This reduces installation time and labor costs, making it a convenient option for various building projects.
● Flexibility: Suitable for both internal and external insulation, XPS foam boards can be used in a variety of wall types, including concrete, brick, and wood frames, meeting diverse construction needs.
● Fire Safety: XPS foam boards have natural fire-resistant properties, preventing the spread of flames and providing an added layer of safety to the building structure.
● Environmental Benefits: Made with eco-friendly foaming agents that have a low global warming potential, the boards contribute to sustainable construction practices and reduce the overall carbon footprint of the building.
● Cost-Effectiveness: Although the initial cost may be higher than some alternatives, the long-term energy savings, durability, and low maintenance make XPS foam boards a cost-effective insulation choice.
● Efficient Insulation: With a low thermal conductivity, the foam board maintains warmth during winter and coolness during summer, enhancing energy efficiency and reducing the need for temperature control systems.
● High Structural Strength: Featuring a closed-cell honeycomb structure, XPS foam boards offer excellent compressive and impact resistance, maintaining shape and structure under external pressures.
● Waterproof and Moisture Control: The foam board’s ability to resist water absorption prevents external rainwater penetration and maintains dry internal walls, extending the lifespan of the building.
Service & Support
Product Customization and Development
We offer tailored solutions for XPS foam boards based on specific project requirements, including custom sizes, thicknesses, colors, and performance characteristics. Our dedicated R&D team continuously innovates to provide the best-fit products, ensuring the perfect match for your application.
Efficient Supply Chain and Technical Support
Our well-established supply chain guarantees consistent raw material supply and sufficient production capacity to meet global demands. We also provide comprehensive technical support, including product design, consultation, and on-site installation guidance, ensuring a smooth installation process.
Quality Assurance and After-Sales Service
We maintain a strict quality control system to ensure the stability and reliability of our products. From raw materials to finished goods, each step undergoes thorough inspections. Our after-sales service offers ongoing technical advice, troubleshooting, and maintenance, ensuring long-term satisfaction.
