XPS board insulation used in floor heating systems for efficient thermal management

You are here: Home / Products / Door Intermediate Material XPS Foam Board / High-density Waterproof Foam Board Best Insulation for XPS FOAM BOARD In The Middle Of The Door

Product Category

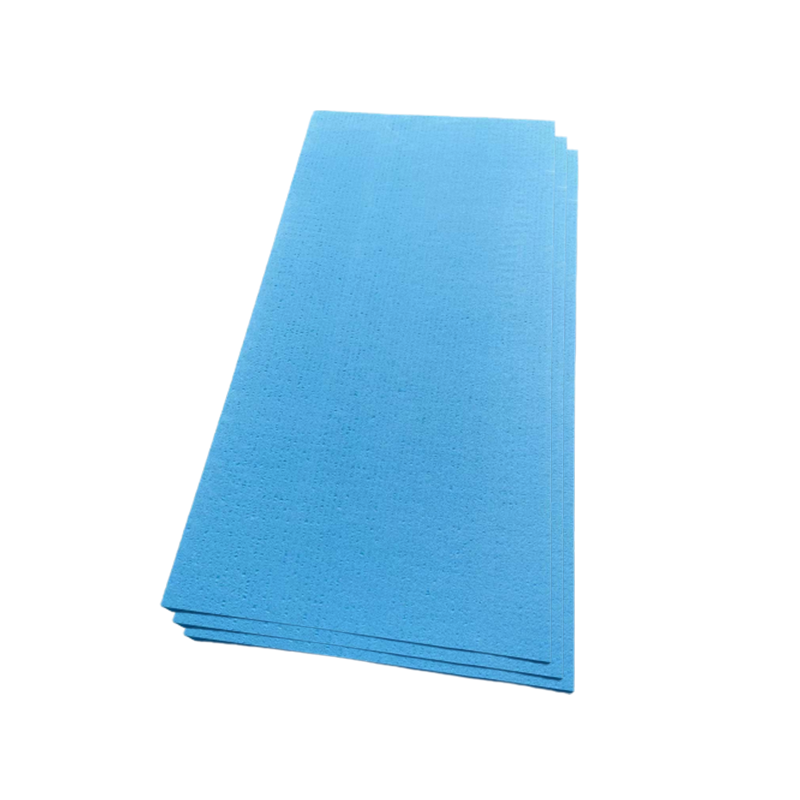

High-density Waterproof Foam Board Best Insulation for XPS FOAM BOARD In The Middle Of The Door

Share to:

High-density Waterproof Foam Board Best Insulation for XPS FOAM BOARD In The Middle Of The Door

Availability:

Quantity:



Inquire Add to Basket

Product Introduction

Extruded panels boast a myriad of benefits, including exceptional compressive strength, superb waterproofing and flame retardant characteristics, alongside their lightweight nature, easy installation, and energy-efficient qualities. These attributes make them highly sought-after in the construction sector, serving as the optimal material for crafting a diverse range of high-performance, long-lasting, secure, and visually appealing doors.

Physical And Mechanical Properties
Item		Unit	Performance
			Smooth Surface
			X150	X200	X250	X300	X400	X450	X500
Compressive strength		Kpa	≥150	≥200	≥250	≥300	≥400	≥450	≥500
Size	Length	MM	1200/2000/2400/2440
	Width	MM	600/900/1200
	Thickness	MM	10/20/25/30/40/50/60/70/80/100
Water absorption rate, water seepage 96h		%(Volume fraction)	≤1.0		≤1.0
GB/T 10295-2008 Thermal Conductivity	Average temperature of 25℃	W/(m.K)	≤0.034			≤0.033
Density		kg/m³	28-38
Remark	Product size, density, compressive strength, thermal conductivity support customization

Product Advantage

1. Superior Durability: The extruded plastic board is highly durable and resistant to compression. It can withstand external impacts and has properties that prevent aging and bacterial growth.

2. Enhanced Thermal Insulation: The extruded plastic board has excellent thermal insulation properties. It effectively prevents the transfer of temperature between the interior and exterior of the door, thereby improving its thermal insulation capabilities.

3. Enhanced Safety: The extruded plastic board is non-flammable and has flame retardant properties. This makes it a protective measure in case of a fire and enhances the safety performance of the door.

Product Uses

Here are four specific application scenarios of packaging machinery:

1、Cold storage cold chain insulation

2、Building roof insulation

3、Steel structure roof

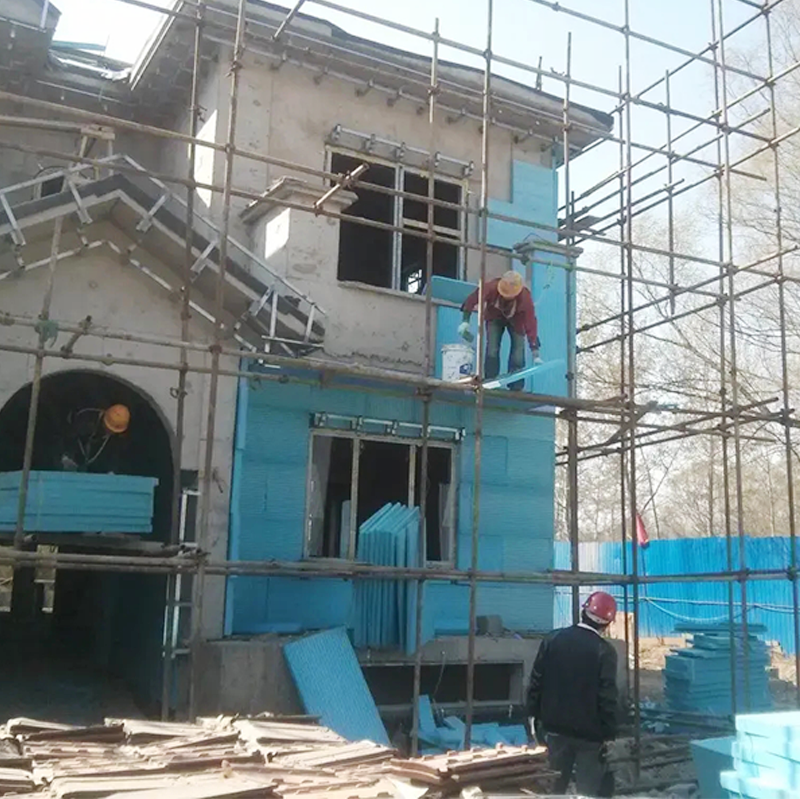

4、Building wall insulation

5、Building ground moisturising

6、Square ground

7, Ground frost control

8, Central air-conditioning ventilation ducts

9, Airport runway heat insulation layer

10, High-speed railway roadbed, etc.

Product Operate Guide

1. Select insulation materials based on the type of door. Metal doors can be insulated with foam or glass wool, while polystyrene board is suitable for wooden doors.

2. Cut the insulation material to match the size of the door panel. Ensure that the material covers as much of the door panel as possible for optimal insulation.

3. Attach the insulation material to the door panel using glue or sealant. Make sure there are no gaps at the edges during application for a seamless fit.

4. Pay special attention to the door edges as they are critical for maintaining insulation. Use windproof tape or rubber strips to seal these areas, preventing cold air from entering through the gaps.

5. Enhance the door's airtightness by applying windproof tape along the door seams. This additional measure helps to further prevent air leakage and improve heat retention.
