In modern building construction, roof insulation plays a critical role in ensuring energy efficiency, structural longevity, and occupant comfort. Among various insulation materials, extruded polystyrene (XPS) insulation has gained significant popularity, particularly for inverted roof systems. This article explores why XPS insulation is an essential choice for inverted roofs, its unique advantages, installation considerations, and how it contributes to sustainable building practices.
Understanding Inverted Roofs
An inverted roof, also known as a protected membrane roof (PMR), is a roofing system where the insulation layer is installed above the waterproofing membrane rather than below it. Unlike traditional roofs, which place insulation beneath the waterproof layer, inverted roofs offer multiple benefits:
Protection of the waterproofing membrane: By placing insulation above, the membrane is shielded from direct sunlight, mechanical damage, and temperature fluctuations.
Improved thermal stability: The insulation layer acts as a buffer, reducing thermal stresses on the roof structure.
Extended lifespan of roofing materials: Protection from UV radiation and physical wear enhances the durability of the waterproofing system.
Inverted roofs are commonly used in flat or low-slope roofs for commercial and residential buildings, as well as green roofs and roof terraces.
What is XPS Insulation?

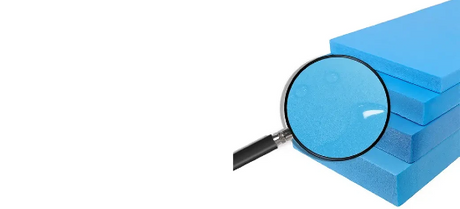

Extruded polystyrene (XPS) is a closed-cell foam insulation material known for its high compressive strength, low water absorption, and excellent thermal performance. Unlike expanded polystyrene (EPS), XPS has a uniform cellular structure created through a continuous extrusion process, which enhances its mechanical properties and moisture resistance.
Key Properties of XPS Insulation
High Compressive Strength: XPS can withstand heavy loads without significant deformation, making it suitable for rooftop applications where foot traffic, equipment, or ballast may be present.
Low Water Absorption: The closed-cell structure prevents water penetration, ensuring the insulation retains its thermal efficiency over time.
Excellent Thermal Performance: XPS provides consistent thermal resistance (R-value), helping maintain stable indoor temperatures and reducing energy costs.
Durability and Longevity: XPS resists rot, mold, and decay, ensuring long-term performance in harsh environmental conditions.
Lightweight and Easy to Install: Its lightweight nature simplifies handling and installation on rooftop surfaces.
Why XPS Insulation is Ideal for Inverted Roofs
1. Protecting the Waterproofing Membrane
In inverted roof systems, the waterproofing membrane is directly exposed to mechanical and environmental stressors. XPS acts as a protective layer, absorbing impact and shielding the membrane from ultraviolet (UV) radiation, extreme temperatures, and thermal expansion and contraction. This protection significantly prolongs the service life of the membrane.
2. Maintaining Thermal Efficiency
XPS insulation’s low thermal conductivity ensures that heat transfer through the roof is minimized. In inverted roof designs, this characteristic is particularly important because the insulation is above the waterproof membrane, directly exposed to external temperature changes. By maintaining thermal efficiency, XPS helps reduce heating and cooling costs, contributing to energy savings and sustainability.
3. Resisting Moisture and Water Damage
One of the major challenges for rooftop insulation is water infiltration. Traditional insulation materials like mineral wool can absorb moisture, which reduces thermal performance and may lead to structural damage. XPS, with its closed-cell structure, has extremely low water absorption rates, making it ideal for inverted roofs, which may occasionally experience ponding water or leaks from adjacent surfaces.
4. Supporting Green Roofs and Roof Terraces
Many modern constructions incorporate green roofs or rooftop terraces, which require insulation that can bear the weight of soil, vegetation, and foot traffic. XPS’s high compressive strength makes it suitable for these applications. It provides a stable, durable, and moisture-resistant base that ensures both the vegetation layer and roof structure are protected.
5. Compatibility with Ballast Systems
In ballasted inverted roofs, insulation is covered by gravel, pavers, or concrete slabs to hold it in place. XPS can handle the additional load without deformation, maintaining its thermal properties and structural integrity over time. Its resilience ensures that even under heavy ballast, the roof continues to perform effectively.
6. Longevity and Low Maintenance
Rooftops are exposed to harsh weather conditions, UV rays, and mechanical loads. XPS’s durability and resistance to degradation make it a low-maintenance choice. Unlike other insulation materials that may require replacement or repairs over time, XPS ensures consistent performance for decades, reducing lifecycle costs.
Installation Considerations for XPS on Inverted Roofs
Proper installation of XPS insulation is critical to achieve the full benefits in inverted roof systems. Here are some key considerations:
Waterproofing Membrane Assessment: Before installing XPS, ensure the waterproofing membrane is intact, clean, and properly installed. Any pre-existing damage should be repaired.
Vapor and Drainage Layers: Although XPS is highly resistant to moisture, inverted roofs may still require drainage mats or geotextile layers to manage water accumulation and prevent hydrostatic pressure.
Edge and Perimeter Detailing: Proper sealing at edges, parapets, and roof penetrations is essential to prevent wind uplift and moisture ingress.
Ballast Placement: In ballasted systems, ensure even distribution of gravel or pavers to avoid point loading that may compress the insulation unevenly.
Mechanical Fastening: In some cases, especially in non-ballasted systems, XPS panels may need mechanical fastening to secure them against wind forces.
By following these best practices, builders and architects can maximize the performance and longevity of both the XPS insulation and the inverted roof system.
Environmental and Energy Benefits
Using XPS insulation in inverted roofs also contributes to sustainable building practices:
Energy Efficiency: High thermal resistance reduces energy consumption for heating and cooling.
Reduced Carbon Footprint: Efficient insulation lowers greenhouse gas emissions associated with building operations.
Durable Materials: Long-lasting XPS reduces the frequency of replacement, minimizing construction waste.
Green Roof Compatibility: Supports sustainable urban environments by enabling vegetation coverage, improving stormwater management, and reducing the urban heat island effect.
Case Studies and Applications
Commercial Buildings
Many commercial buildings with flat or low-slope roofs benefit from inverted roof systems with XPS insulation. Office buildings, shopping centers, and warehouses often have rooftop equipment, foot traffic, and exposure to the elements. XPS provides the necessary load-bearing capacity, moisture resistance, and thermal efficiency.
Residential Buildings
In multi-story residential buildings, inverted roofs with XPS insulation enhance occupant comfort and reduce energy bills. The added protection for the waterproofing membrane ensures minimal maintenance and long-term performance, even in regions with extreme weather.
Green Roof Projects
Urban green roof initiatives leverage XPS insulation to provide a stable, moisture-resistant base for vegetation layers. The combination of XPS insulation and a robust drainage system ensures plant health while protecting the roof structure.
Roof Terraces and Recreational Spaces
XPS supports roof terraces by providing a durable surface capable of handling foot traffic and outdoor furniture. Its water-resistant properties prevent damage from spills, rain, and snow, ensuring safety and comfort for users.
Common Misconceptions about XPS in Inverted Roofs
"XPS absorbs water over time." While no insulation is entirely impervious, XPS has extremely low water absorption due to its closed-cell structure.
"XPS is only suitable for cold climates." XPS performs effectively in both hot and cold climates, providing thermal insulation and protection against temperature extremes.
"XPS is fragile under heavy loads." Modern XPS panels are designed with high compressive strength, capable of supporting ballast, green roofs, and pedestrian traffic.
"Installation is complicated." XPS is lightweight, easy to cut and shape, and compatible with common roofing practices, making installation straightforward with proper planning.
Conclusion
For anyone designing or maintaining inverted roof systems, XPS insulation is not just an option—it is a necessity. Its combination of high compressive strength, low water absorption, excellent thermal performance, and long-term durability makes it the ideal choice for protecting the waterproofing membrane, supporting ballast or green roofs, and enhancing energy efficiency.
Investing in XPS insulation ensures that roofs remain functional, efficient, and low-maintenance for decades. Its environmental benefits further align with modern sustainable building practices, making XPS the smart choice for architects, builders, and building owners alike.
To explore high-quality XPS insulation solutions tailored for inverted roofs and learn how your projects can benefit, you can contact Shanghai Taichun Energy Saving Technology Co., Ltd. for professional guidance and support.
FAQ
Q: What is XPS insulation?
A: XPS (extruded polystyrene) insulation is a closed-cell foam material known for high compressive strength, low water absorption, and excellent thermal resistance.
Q: Why is XPS ideal for inverted roofs?
A: XPS protects the waterproof membrane, resists moisture, supports heavy loads, and maintains thermal performance under external exposure.
Q: Can XPS handle foot traffic and ballast on rooftops?
A: Yes, modern XPS panels are designed with high compressive strength, making them suitable for roof terraces, ballasted roofs, and green roof applications.
Q: How does XPS improve energy efficiency in buildings?
A: By providing stable thermal insulation, XPS reduces heat transfer through the roof, lowering heating and cooling costs while supporting sustainable building practices.
