Introduction to XPS Board
What is XPS Board?

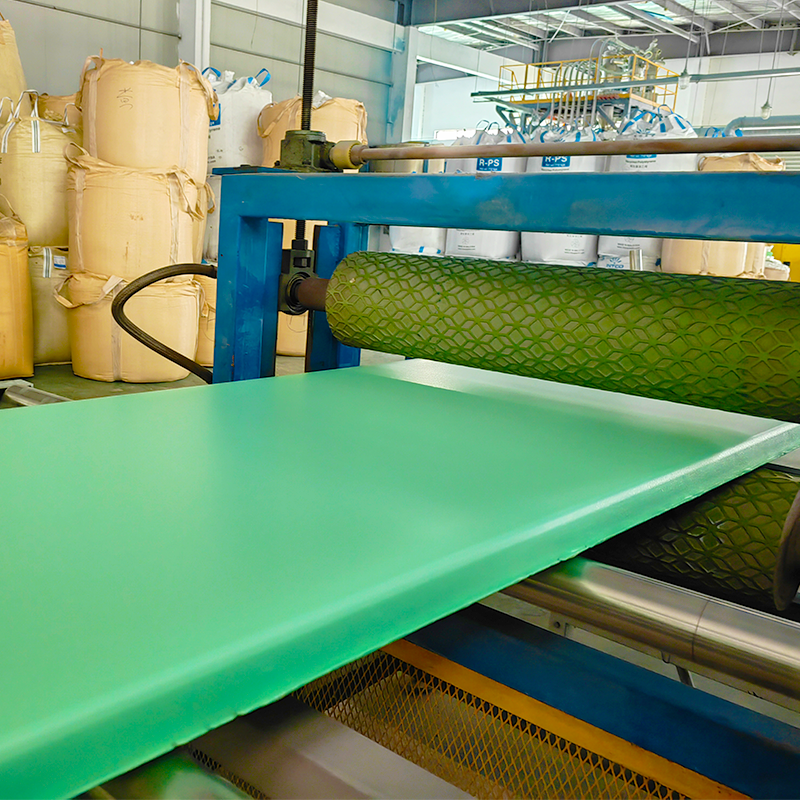

Extruded Polystyrene (XPS) Board is a popular material used primarily in the construction and insulation industries. It is made by extruding polystyrene resin through a process that forms a rigid foam sheet. XPS is known for its excellent thermal insulation properties, moisture resistance, and structural strength, making it a reliable choice for insulating buildings, roads, and other infrastructures. It is commonly used in areas that require high moisture resistance like foundations and below-grade applications.
Composition and Properties of XPS Board
XPS Board consists mainly of polystyrene polymer, which is a type of plastic. It is often characterized by its closed-cell structure, where each cell is completely sealed off from the others. This structure contributes to its superior thermal insulating capabilities. The board also has resistance to water absorption, making it ideal for applications in damp or humid environments. Its high compressive strength makes it suitable for applications under heavy loads, such as roadbeds or foundation insulation.
2. Understanding Fire Resistance
What is Fire Resistance?
Fire resistance refers to the ability of a material to withstand the effects of heat and flames for a certain period without significantly degrading, losing structural integrity, or contributing to the spread of fire. Fire resistance is an essential quality in construction materials, particularly in buildings where fire safety is a concern. The term is often confused with "flammability," which refers to how easily a material can ignite in the first place.
Different Levels of Fire Resistance in Building Materials
Building materials are classified based on their fire resistance properties, which are tested according to various national and international standards. These tests generally assess:
Ignition Point: The temperature at which a material starts to burn.
Flame Spread: The rate at which flames travel across a material’s surface.
Smoke Development: The amount of smoke produced when a material burns.
Structural Integrity: The material's ability to maintain its form and function during a fire.
Materials are often rated with a specific fire resistance rating, such as 30 minutes, 1 hour, 2 hours, or more, depending on their performance in these tests.
3. Is XPS Board Flammable?
Flammability of XPS Board Explained
XPS Board is a flammable material, meaning that it can catch fire and burn if exposed to high heat or flames. While it does not ignite as easily as some other materials, it is not considered a non-combustible substance. XPS has a relatively low ignition temperature, which is around 400°F (204°C), meaning that under the right conditions, it can catch fire.
However, it is important to note that XPS typically does not produce a sustained flame once the external source of heat or flame is removed. Instead, it tends to melt and shrink away from the fire. This reaction can help limit the spread of flames, but it does not make the material entirely safe from fire hazards.
What Happens When XPS Board Catches Fire?
When XPS Board catches fire, it undergoes a process known as pyrolysis, where the material breaks down due to high heat. The polystyrene foam will begin to melt and release flammable gases, which can contribute to the spread of flames. The gases released are usually carbon monoxide, carbon dioxide, and other volatile organic compounds (VOCs), which can be harmful if inhaled.
Additionally, as the XPS burns, it may emit toxic smoke, which is another concern in fire situations. Because of this, XPS board should not be used in areas where there is a high risk of fire unless proper fire retardant treatments are applied.
4. Fire Performance of XPS Board
Ignition Temperature of XPS Board
The ignition temperature of XPS Board typically ranges between 400°F and 450°F (204°C to 232°C), which is relatively low compared to some other construction materials like concrete or metal. This means that XPS is susceptible to ignition if exposed to a significant heat source or flame. However, the material tends to melt and shrink rather than continue burning once the external heat source is removed.
Fire Retardant Treatments for XPS
While XPS is inherently flammable, it is possible to enhance its fire resistance through various treatments and coatings. Fire retardant chemicals can be added to XPS during the manufacturing process or applied as a surface coating after installation. These treatments work by slowing the combustion process, reducing the spread of flames, and minimizing the release of toxic gases. For example, certain flame-retardant additives, such as brominated or phosphorous-based compounds, can be mixed into the foam to improve its fire performance.
It’s important to check the manufacturer’s specifications for fire-resistant XPS boards, as not all XPS products are treated with fire retardants, and their performance can vary.
5. Comparison with Other Insulation Materials
How Does XPS Compare to EPS and Polyurethane?
XPS Board is often compared to Expanded Polystyrene (EPS) and Polyurethane (PUR), which are also commonly used insulation materials. While all three materials share similar thermal insulation properties, they differ significantly in terms of flammability and fire performance.
EPS (Expanded Polystyrene): EPS is also a flammable material but tends to be more resistant to fire than XPS. However, EPS has a higher thermal conductivity compared to XPS, meaning it is not as effective as an insulator. Additionally, EPS often burns more readily, producing large amounts of smoke and toxic gases.
Polyurethane (PUR): Polyurethane is a high-performance insulation material with excellent thermal resistance. However, it is also highly flammable and can release large amounts of toxic smoke when exposed to flames. Some versions of PUR come with fire retardants, but it is generally considered less fire-resistant than both XPS and EPS.
Pros and Cons of XPS Board in Fire Resistance
Pros:
Cons:
XPS will still burn if exposed to high temperatures or open flames.
It emits toxic smoke and gases when burned, which can be harmful in fire situations.
6. Safety Standards and Regulations for XPS Board
National Fire Protection Association (NFPA) Standards
The National Fire Protection Association (NFPA) provides guidelines for the use of building materials like XPS in the United States. NFPA 286, for instance, evaluates how building materials, including insulation products, react to fire. It outlines how materials should be used, where fire barriers might be required, and how to minimize fire risks in buildings. XPS Board must meet certain fire performance standards before it can be used in construction, particularly for indoor applications. NFPA ratings for flammability (like the Class A, B, or C ratings) help builders and architects determine the appropriate use of XPS in specific building areas.
European Fire Safety Standards for Insulation
In Europe, the Euroclass system is commonly used to classify building materials according to their fire resistance properties. Under this system, materials are rated from A1 (non-combustible) to F (highly combustible). Standard XPS insulation often falls into the Euroclass E category, which means it is combustible but does not contribute significantly to the spread of fire. The European standards for fire resistance are strict, especially for materials used in high-rise and commercial buildings, where additional fire-resistant layers or treatments may be required for safety compliance.
7. How to Improve the Fire Safety of XPS Board
Protective Coatings and Treatments
To improve the fire resistance of XPS Board, manufacturers and builders often use fire-resistant coatings. These coatings can act as a barrier, slowing the rate at which the XPS ignites and burns. Common fire-resistant coatings include intumescent paints, which expand when exposed to heat to create a protective barrier, and cementitious coatings, which add a non-combustible layer to the surface of the board. These treatments do not make XPS entirely fireproof, but they significantly reduce the risk of ignition and fire spread.
Fire-Resistant Cladding and Insulation Systems
For added fire safety, XPS is often used in conjunction with fire-resistant cladding systems. These systems involve covering XPS insulation with non-combustible materials like concrete or metal. Fire-rated gypsum board can also be used as an additional layer over XPS to reduce fire hazards. By using fire-resistant cladding or installing the XPS within a fire-rated wall assembly, builders can help meet stringent fire codes and improve overall building safety.
8. Benefits of Using XPS Board Despite Fire Concerns
Thermal Insulation Properties
One of the primary reasons builders continue to use XPS Board despite its flammability is its exceptional thermal insulation properties. XPS has a low thermal conductivity, meaning it minimizes heat transfer and contributes to energy efficiency. Its closed-cell structure makes it highly effective in retaining warmth during winter and keeping buildings cool in the summer, which is especially valuable in regions with extreme temperatures.
Durability and Moisture Resistance
XPS is particularly known for its durability and resistance to moisture. Unlike other insulation materials, it does not absorb water easily, which helps it maintain its insulating properties over time, even in damp environments. This makes it an excellent choice for basements, foundations, and exterior applications where moisture exposure is a concern. The durability and moisture resistance of XPS ensure long-term performance and reduce the need for frequent replacements.
9. Common Applications of XPS Board
Where is XPS Used?
XPS Board is widely used in both residential and commercial construction due to its versatile insulating properties. It is commonly found in:
Walls: Interior and exterior walls for improved energy efficiency.
Foundations: Insulating around foundations to protect against heat loss.
Roofing Systems: As a layer beneath roof shingles or tiles for added thermal resistance.
Floors and Ceilings: Adding insulation to floors, especially over unheated spaces like garages.
Application in Residential and Commercial Buildings
In residential buildings, XPS is typically used in wall cavities, attic spaces, and floors to create an effective thermal barrier. In commercial settings, XPS is used in energy-efficient building designs to help meet sustainability and energy code standards. The material’s ability to withstand compressive loads also makes it suitable for roads, bridges, and other infrastructure projects that require insulation and load-bearing capabilities.
10. Environmental Impact and Sustainability of XPS Board
Recycling and Disposal of XPS Board
One concern with XPS Board is its environmental impact, as it is derived from petroleum-based products. Recycling XPS is challenging, though not impossible, and many regions now have facilities that can process polystyrene foam waste. Recycling XPS helps reduce landfill waste and minimize the environmental footprint of construction projects that use this material. Additionally, manufacturers are investing in ways to improve the recyclability and reuse of XPS to promote sustainable building practices.
Environmental Concerns and Alternatives
The production of XPS foam involves the use of blowing agents, which may have a high global warming potential (GWP). In recent years, manufacturers have begun using more eco-friendly blowing agents to reduce emissions. There are also alternative insulation materials, such as mineral wool or cellulose, that offer fire resistance and environmental benefits. These materials, however, may not provide the same level of moisture resistance or insulation performance as XPS, meaning there is often a trade-off between environmental sustainability and insulating effectiveness.
11. Conclusion
In conclusion, while XPS Board does have flammability concerns, it remains a popular insulation material due to its excellent thermal performance, moisture resistance, and durability. When used properly, with added fire retardant treatments or in combination with fire-resistant barriers, XPS can be safely integrated into buildings to provide effective insulation without significantly compromising fire safety. Builders and consumers should always be aware of fire ratings, installation techniques, and applicable fire codes to ensure that XPS is used safely and effectively in construction projects.
FAQs
Is XPS Board safe for indoor use in residential buildings?
How does XPS compare to fiberglass in terms of fire safety?
Fiberglass is non-combustible, while XPS is flammable. However, XPS provides better moisture resistance and insulation performance, making it suitable for specific applications where fiberglass may not be as effective.
Can XPS Board be recycled?
Yes, XPS can be recycled, although recycling options vary by region. Some facilities can process polystyrene foam waste, which helps reduce landfill impact.
What are common fire-retardant treatments for XPS Board?
Is XPS environmentally friendly?
