So you’ve got a stack of XPS boards, a tape measure, and a gleam in your eye. Excellent! XPS is rigid, waterproof, and has a high R‑value per inch – which is science‑speak for “keeps your toes warm and your wallet happy.” Installing it isn’t rocket science, but it does require a little patience and a few good tunes. Let’s do this.
What You’ll Need (Gather Your Sidekicks)
- XPS insulation boards (thickness depends on your climate – 1” to 2” is common)
- Utility knife with a fresh blade (or a hot‑wire cutter if you’re feeling fancy)
- Straightedge (a level works great – as long as you don't use it to check your beer)
- Measuring tape (the one that doesn’t retract and smack you in the face)
- Foam‑board adhesive (look for “low‑VOC” and “XPS‑compatible” on the tube)
- Screws with plastic cap washers (if you’re attaching to wood or metal studs)
- Masonry anchors and a hammer drill (if you’re going into concrete – yes, that’s a real thing)
- Foam seam tape or spray foam (for sealing the cracks)
- Safety glasses, gloves, and a dust mask (foam dust is like fairy glitter – but meaner)
- A buddy (to hand you things and laugh at your puns)
Step 1: Choose Your Battlefield (Where Are You Installing?)
XPS loves damp places – basements, crawlspaces, and exterior walls. But you can also put it on ceilings if you want. The steps are mostly the same: clean the surface first. Brush off dust, scrape off old paint chunks, and make sure there are no nails sticking out to stab your board (or your hand).
> Pro tip: If you’re installing over concrete, check for moisture issues first. XPS is waterproof, but trapped water behind it can grow mold – and mold is not a guest you want.

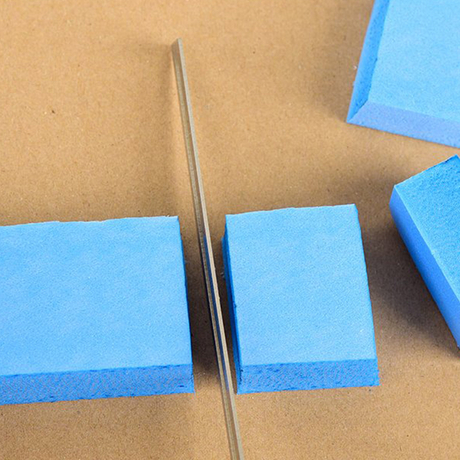

Step 2: Measure, Mark, and Cut – Like a Boss
Measure the space between your studs or joists (usually 16” or 24” on centre). Transfer those numbers to your XPS board. Cut XPS differently than EPS – it’s denser, so a sharp utility knife works, but you’ll need to score deeply (about half the thickness) and then snap it over a straight edge. Snap! Clean break every time.
For thicker boards (over 1.5”), a hot‑wire cutter makes silky smooth edges – but it’s not mandatory. A fine‑toothed saw also works, but expect some crumbs. Either way, cut about ¼” smaller than your measurement – that gap will get filled later, and it makes shoving the board up there way easier.
Step 3: Adhesive – The Sticky Stuff
Run a zigzag bead of foam‑board adhesive along the back of your cut piece. Not too thin, not too thick – think of drawing a squiggly river. Press the board firmly against the wall or ceiling, and hold for about 10 seconds. The adhesive grabs pretty fast, but it’s not magic – give it a minute before you let go completely.
If you’re working overhead, have your friend hold the board while you apply pressure. Or use a couple of temporary supports (like a 2x4 wedged underneath) – your arms will thank you later.
Step 4: Mechanical Fasteners – Because Glue Isn’t Everything
For extra security (and to meet building codes), add screws with plastic cap washers. Place one at each corner and one in the middle – drive them through the board into the framing below. Don’t over‑tighten – you want the washer to just kiss the foam, not bury itself like a tick. Snug is perfect.
If you’re attaching to concrete, use masonry anchors – pre‑drill a hole through the foam and into the concrete, then tap in the anchor and screw it down. It’s a bit more work, but your XPS will stay put through earthquakes (or enthusiastic dance parties).
Step 5: Seal the Seams (Make It Air‑Tight)
XPS boards don’t always fit perfectly – and that’s okay. Grab your foam seam tape (the kind with foil or mesh backing) and tape over every joint. Or, if you prefer, use low‑expansion spray foam to fill gaps – it’ll puff up, seal everything, and you can trim the excess once it cures. This step is crucial because even a tiny gap lets heat escape like a thief in the night.
Bonus tip:If you’re using foil‑faced XPS, tape the seams with foil tape – it creates a radiant barrier too. Fancy!
Step 6: Cover It Up (Seriously, Don’t Leave It Naked)
Here’s the most important part: XPS is flammable. Like, really flammable. Building codes require a thermal barrier – usually ½” drywall – over exposed foam in living spaces. So unless you want your home to become a giant fire starter, plan to cover it with drywall, plywood, or a fire‑rated coating. Safety first, always.
Extra Love for Your XPS Project
- Cutting indoors?Open a window or set up a fan – those tiny foam pellets are static‑charged and will stick to everything, including your cat.
- Mind your electrical – keep XPS away from recessed light fixtures (unless they’re IC‑rated) and don’t compress wires behind the board.
- Multiple layers – if you need more R‑value, you can stagger two layers of thinner XPS, taping the seams of each layer. It’s like insulation lasagna – deliciously warm.
- Check your local code– some areas require a vapour retarder on the warm side, but XPS already has a low permeability, so you’re often fine. Still, double‑check.
Take a Bow – You Did It!
Now step back and admire your handiwork. Your room is quieter, your energy bills are about to take a nosedive, and you’ve officially graduated from “DIY dabbler” to “insulation guru.” Go ahead – give that XPS board a proud pat. It earned it.
And remember: even if you made a few crooked cuts or got glue on your favourite shirt, it’s still way better than hiring a contractor – and you get to say, “I built that.” Now go enjoy your fortress of thermal comfort – and maybe treat yourself to that pizza you promised.
Happy insulating, you magnificent weather‑proof warrior!
