How to Choose the Right Thickness of XPS Board for Cold Storage Insulation: Don’t Let Your Ice Cream Melt!

So, you are building a cold storage room. Congratulations! You are about to embark on a journey of keeping things frosty. But here is the million-dollar question: How do you keep the cold in and the hot out? The secret lies in choosing the right thickness of XPS (Extruded Polystyrene) board. Don’t worry—this isn’t rocket science. Think of it as picking the perfect winter coat for your freezer.

The "Goldilocks" Principle: Not Too Thin, Not Too Thick

Choosing the right thickness of XPS board is a lot like the story of Goldilocks and the Three Bears. You don’t want it too thin (or your compressor will work overtime and your electricity bill will skyrocket), and you don’t want it unnecessarily thick (or you will sacrifice valuable storage space for no reason). You want it just right .

Step 1: Know Your Cold Storage Temperature

The most important factor in deciding thickness is simple: How cold do you want it? Different foods and products require different climates.

1.  The "Cool as a Cucumber" (High-Temperature Cold Storage / 0°C to 4°C)

    Think of this as the "wine cellar" or "apple crisper" of the cold storage world. You just need to keep things fresh, not frozen.

    - Recommended Thickness: 60 mm to 80 mm .

    - Vibe: A light denim jacket. It does the job without being bulky.

2.  The "Freezer Pop" Zone (Medium-Temperature Cold Storage / -18°C to 0°C)

    This is your standard freezer for meat, ice cream, and frozen veggies. The temperature drops below freezing, so you need to bring out the big guns.

    - Recommended Thickness: 100 mm to 150 mm .

    - Vibe: A heavy-duty winter parka. It traps the cold air inside where it belongs.

3.  The "Arctic Expedition" (Low-Temperature & Quick-Freeze / -25°C and below)

    If you are storing tuna for sushi or conducting scientific experiments, you need serious insulation. These rooms are the coldest of the cold.

    - Recommended Thickness: 150 mm to 200 mm .

    - Vibe: The Michelin Man suit. Maximum protection against the elements.

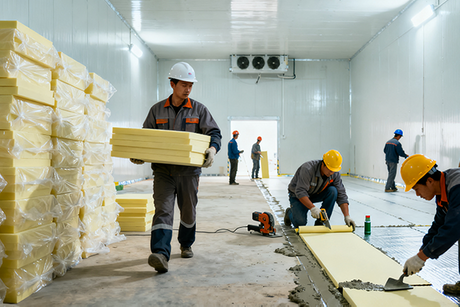

Step 2: Don't Forget the Floor! (The Load-Bearing Factor)

Here is where it gets tricky. The walls and ceiling just have to hold up themselves, but the floor has to hold up everything. If you are planning to drive a forklift into your cold storage, your XPS floor insulation needs to be tough .

- Light Duty (Just walking): Standard compressive strength is fine.

- Heavy Duty (Forklifts & Pallet Jacks): You need high-compression strength (think 500 kPa or more) . Often, to achieve this strength and the required insulation value, experts recommend laying two layers of board (like 75 mm x 2) with staggered seams. This prevents "cold bridging" (where cold escapes through the cracks) and distributes the weight better .

Step 3: The "Secret Sauce" of XPS

Why do we love XPS for this job?

- Closed-Cell Structure: XPS boards have a closed-cell structure with over 99% close rate. This makes them fantastic at resisting moisture. In a cold room, moisture is enemy number one (it leads to ice buildup and rot) .

- Low Thermal Conductivity: With a导热系数 (thermal conductivity) usually ≤ 0.030 W/(m·K), XPS is like a bouncer at a club, stopping heat from sneaking in .

The Ultimate "Cheat Sheet"

To make your life easier, here is a quick-reference guide based on expert recommendations:

The Bottom Line

Choosing the right thickness isn't just about following a chart; it is about understanding what you are storing. When in doubt, it is usually safer (and more energy-efficient) to go a little thicker.

Remember, a well-insulated cold storage room is like a good joke: it requires perfect timing (of your compressor) and great delivery (of the XPS boards). Stay frosty!
