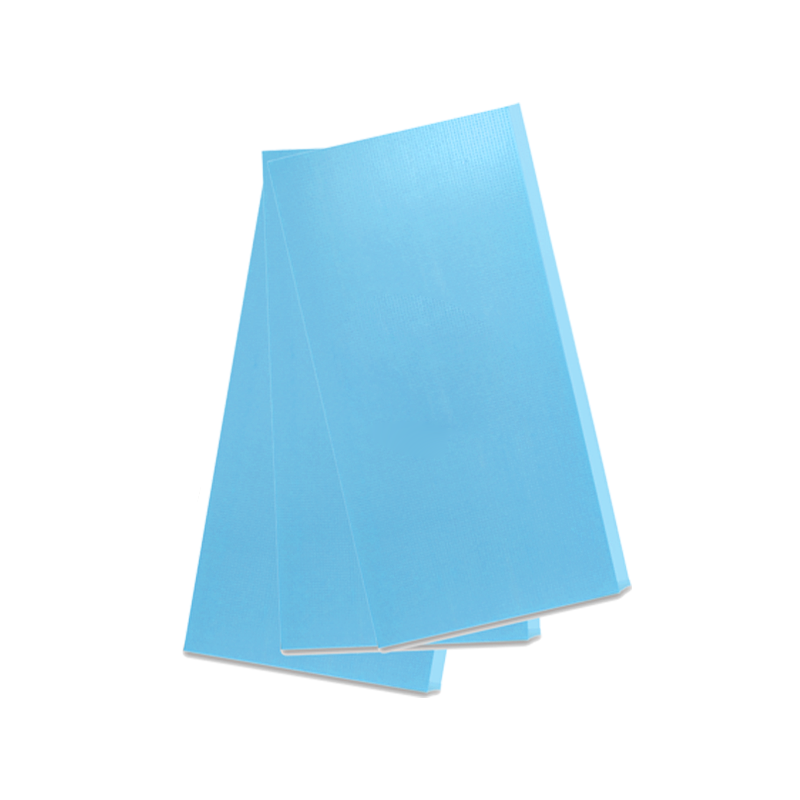

Internal and external wall insulation foam panels find extensive application across various new and existing buildings, as well as renovation projects for external and internal wall insulation. They offer substantial enhancements to thermal insulation performance and comfort levels within buildings, while concurrently aiding in the reduction of energy consumption. This aligns with the global initiatives for energy conservation and emission reduction, as well as the prevailing trend towards green building development. Such panels are utilized across diverse sectors including residential, commercial, and public constructions.
Physical And Mechanical Properties
Item
Unit
Performance
Smooth Surface
X150
X200
X250
X300
X400
X450
X500
Compressive strength
Kpa
≥150
≥200
≥250
≥300
≥400
≥450
≥500
Size
Length
MM
1200/2000/2400/2440
Width
MM
600/900/1200
Thickness
MM
10/20/25/30/40/50/60/70/80/100
Water absorption rate, water seepage 96h
%(Volume fraction)
≤1.0
≤1.0
GB/T 10295-2008 Thermal Conductivity
Average temperature of 25℃
W/(m.K)
≤0.034
≤0.033
Density
kg/m³
28-38
Remark
Product size, density, compressive strength, thermal conductivity support customization
Product Advantage
1. Excellent Thermal Performance: XPS (Extruded Polystyrene) foam board has a high R-value, meaning it provides effective thermal insulation. This helps in maintaining comfortable indoor temperatures and reducing energy consumption for heating and cooling.
2. Moisture Resistance: XPS foam boards are resistant to moisture, making them suitable for both interior and exterior applications. This property helps prevent moisture infiltration into the walls, which can cause mold, mildew, and structural damage over time.
3. Durability and Longevity: XPS foam boards are highly durable and resistant to degradation over time. They do not absorb water or rot, ensuring long-term performance and stability of the insulation system.
4. Easy Installation: XPS foam boards are lightweight and easy to handle, making installation relatively straightforward. They can be cut to size easily and fitted into place, reducing installation time and labor costs.
5. Thinner Profiles: Compared to some other insulation materials, XPS foam boards offer high thermal resistance in thinner profiles. This can be advantageous in situations where space is limited, such as retrofitting existing buildings or constructing walls with limited thickness.
6. Fire Resistance: XPS foam boards are inherently fire-resistant and can help improve the fire safety of buildings. They have a low flame spread and smoke development rating, reducing the risk of fire spread in case of an incident.
7. Versatility: XPS foam boards can be used for both interior and exterior insulation applications, offering versatility in building design and construction. They can be installed beneath siding, cladding, or stucco on the exterior, and within walls on the interior, providing consistent thermal performance throughout the building envelope.
8. Environmental Benefits: XPS foam boards are recyclable and can be manufactured with a low environmental impact. Additionally, their high thermal efficiency can contribute to energy savings and reduced greenhouse gas emissions over the lifespan of the building.
Product Uses
Here are four specific application scenarios of packaging machinery:
1、Cold storage cold chain insulation
2、Building roof insulation
3、Steel structure roof
4、Building wall insulation
5、Building ground moisturising
6、Square ground
7, Ground frost control
8, Central air-conditioning ventilation ducts
9, Airport runway heat insulation layer
10, High-speed railway roadbed, etc.
Product Operate Guide
1. Effective Thermal Insulation: The internal and external wall insulation of the extruded plastic board boasts ultralow thermal conductivity. This feature helps retain warmth during cold winters and keeps out excess heat during hot summers. Consequently, it significantly lowers the building's reliance on air conditioning and heating, thereby enhancing energy efficiency.
2. Superior Structural Strength: Thanks to its distinctive closed-cell honeycomb structure, the extruded plastic board exhibits remarkable compressive strength and impact resistance. Whether facing external pressures or internal forces, it maintains stable form over extended periods, effectively countering wind loads and external pressure.
3. Waterproof and Moisture-Resistant: Its non-absorbent nature serves as an effective barrier against moisture infiltration. This property safeguards external walls from rain erosion and reduces indoor humidity for internal walls, ensuring prolonged wall integrity and building longevity.
4. Exceptional Stability: The extruded plastic panels maintain consistent dimensional stability in varying temperature conditions, minimizing risks of excessive contraction or expansion due to temperature fluctuations. This feature prevents issues like wall cracking or spalling, ensuring long-term structural integrity.
5. Easy Installation: Lightweight and easily customizable, extruded plastic boards facilitate convenient installation. They can be tailored to fit various wall dimensions and installed swiftly through bonding, anchoring, or other methods, streamlining construction processes and reducing labor costs.
6.Environmental Sustainability: Premium extruded plastic panels are produced without harmful substances, aligning with modern energy-saving and eco-friendly construction standards. With a long lifespan and recyclability post-use, they contribute to sustainable building practices and environmental conservation.
